Head & Neck

Paranasal Sinuses

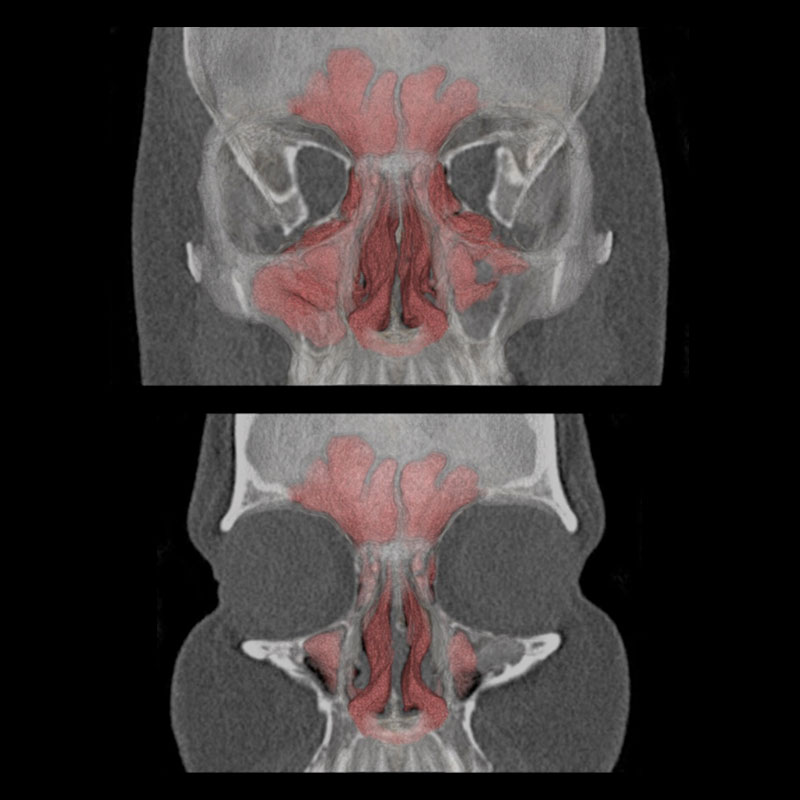

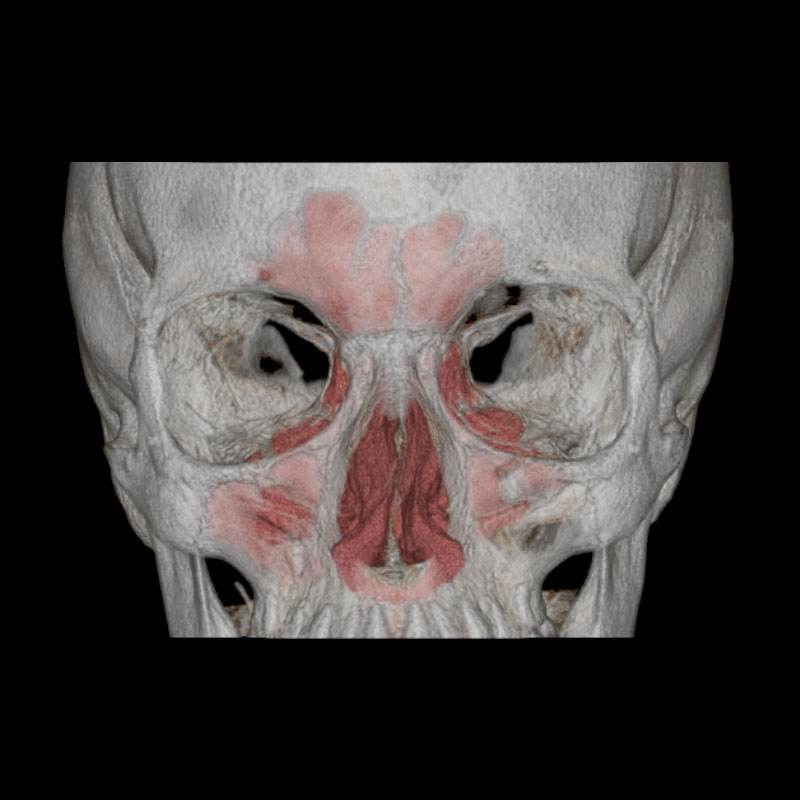

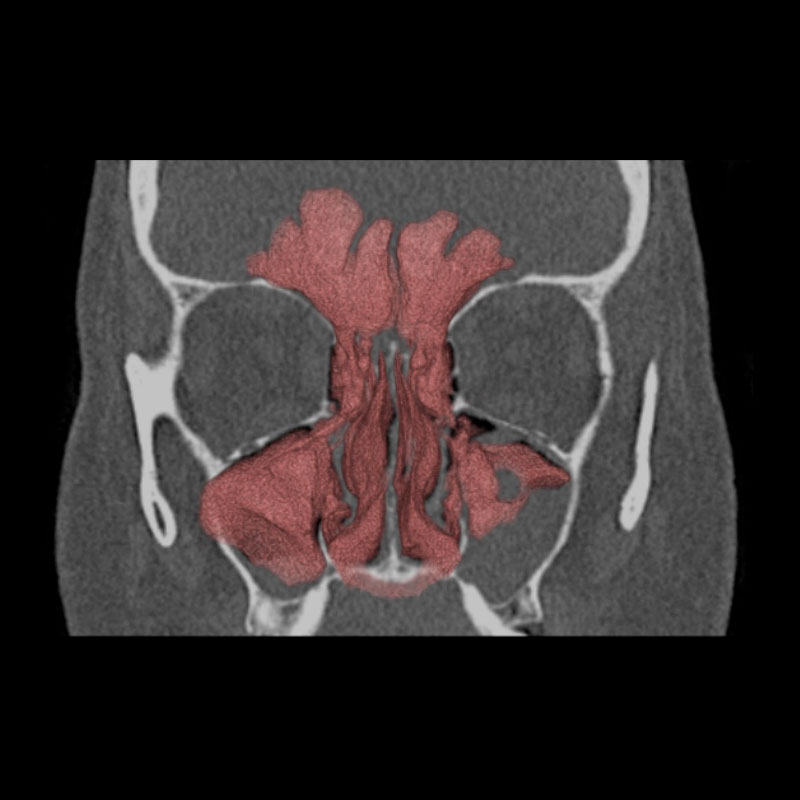

Aquilion Lightning A non-contrast CT scan of the head was performed for sinus evaluation. The multiplanar reconstructions and 3D Volume Rendered images demonstrate bilateral maxillary sinus opacification.

View Scan Parameters

Scan Mode Helical

Collimation 0.5 mm x 16

kVp 80

mAs 30

Rotation Time 0.6 s

Scan Range 90.9 mm

Dose Reduction AIDR3D

CTDIvol 4.7 mGy

DLP 48.6 mGy•cm

Effective Dose 0.10 mSv

k-factor 0.0021 (AAPM Report 96)

Head & Neck

^SURESubtraction Carotid CTA

Aquilion Lightning

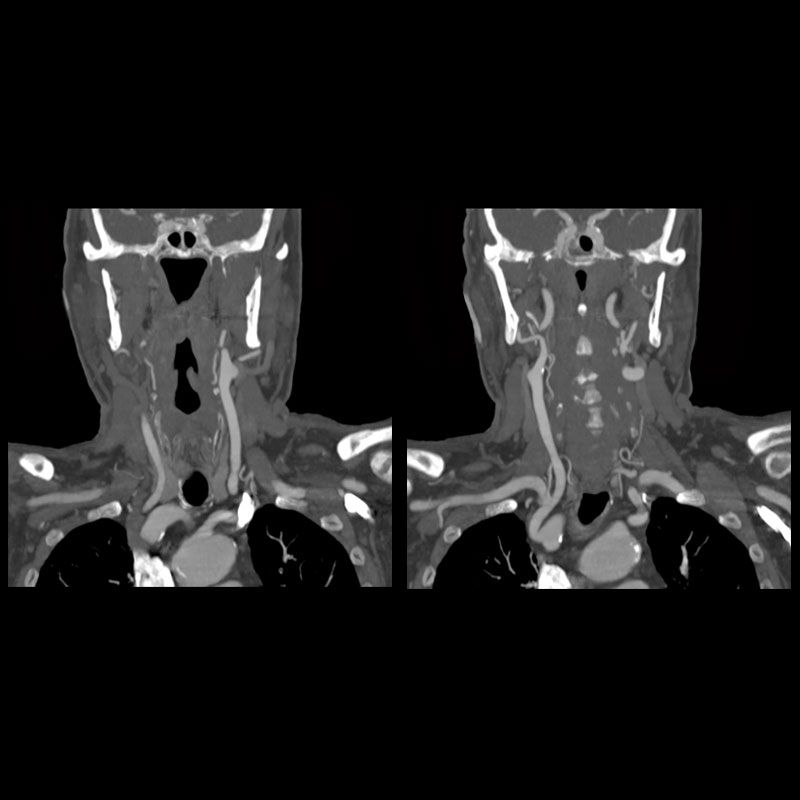

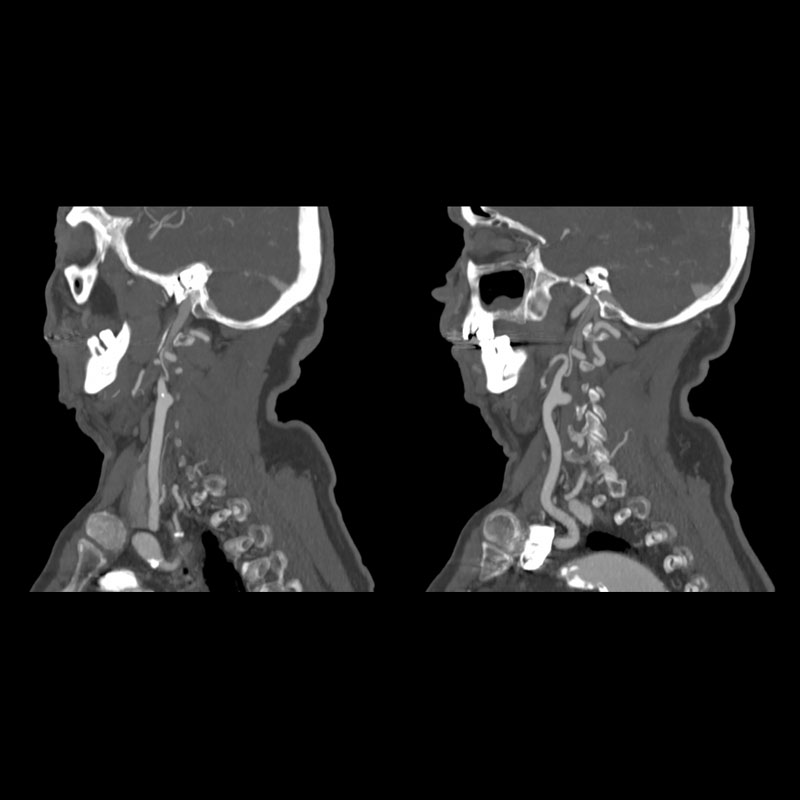

81-year-old male, a ^SURESubtraction Carotid CTA was performed with ^SUREExposure, mA modulation and AIDR 3D, Adaptive Iterative Dose Reduction. Maximum Intensity Projection (MIP) and 3D volume rendered images demonstrate small calcifications in the right carotid artery.
