Body

Runoff CTA, Femoral Bypass

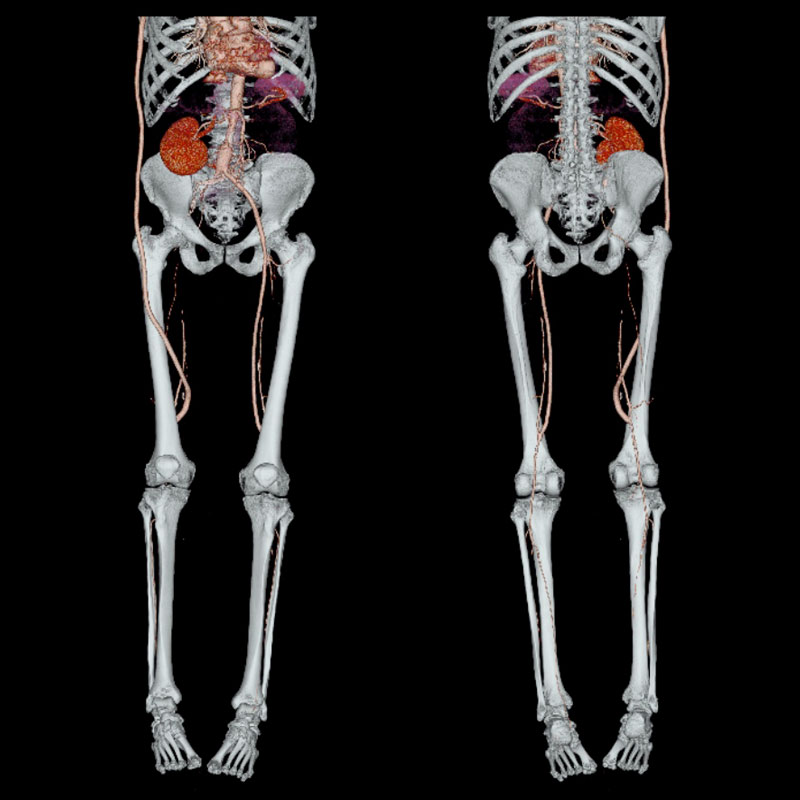

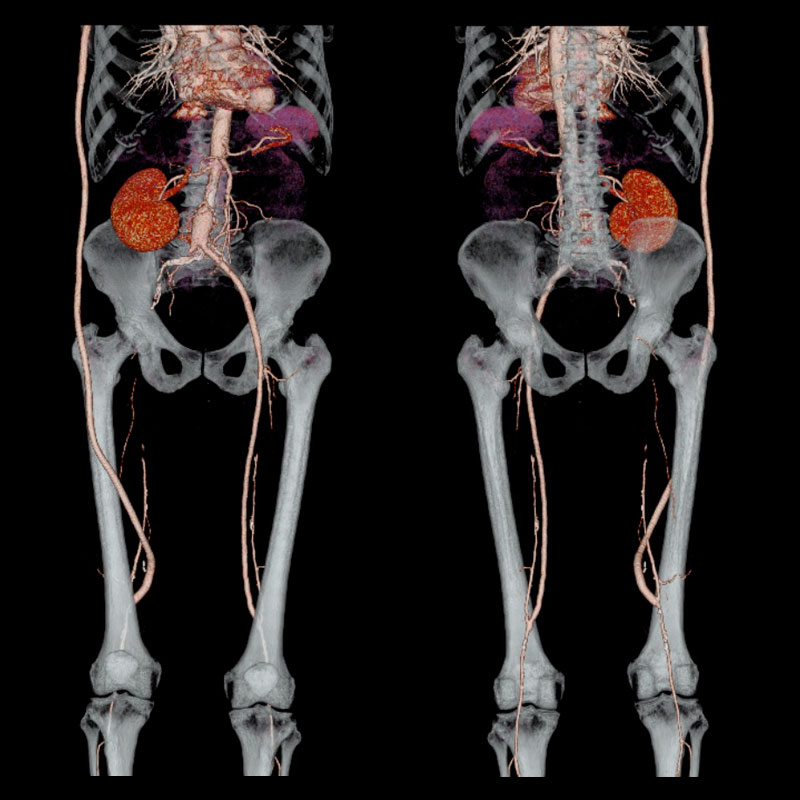

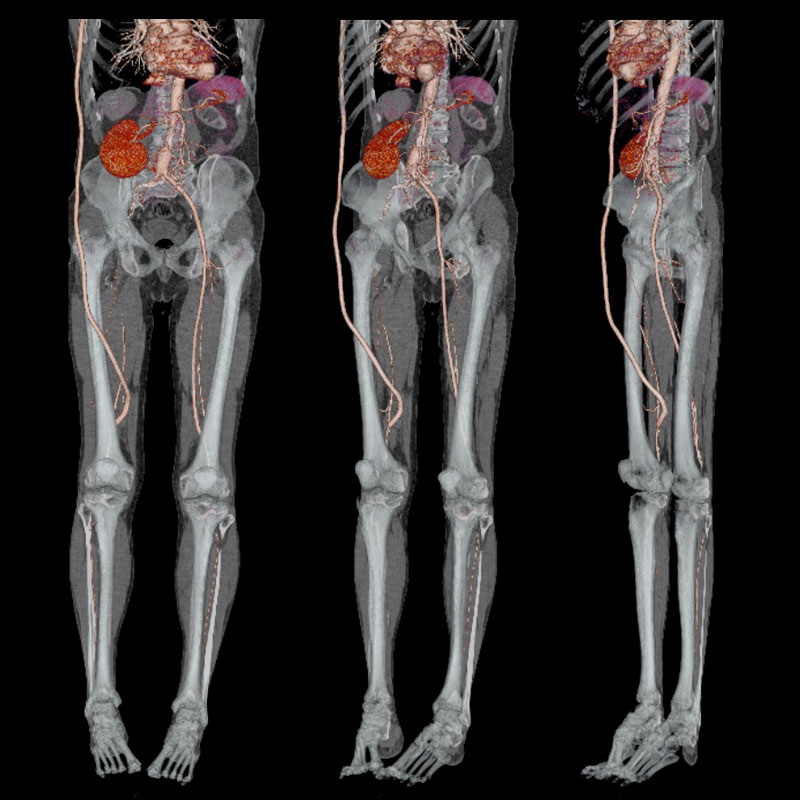

Aquilion Lightning 63-year-old male. CT Runoff Angiography was performed with ^SUREExposure and ^SUREkV, automatic mA modulation and kV selection. Multiplanar Reconstructions (MPR) and 3D Volume Rendered images demonstrate bilateral iliac-femoral artery occlusion; right axillary femoral bypass graft and a left aortofemoral bypass graft with restored blood flow to both femoral arteries. Severe diffuse atherosclerotic disease and aortic aneurism pre-bifurcation is also demonstrated. Blood flow is seen bilaterally in the extremities.

View Scan Parameters

Scan Mode Helical

Collimation 1.0 mm x 16

kVp ^SURE kV, 100

mAs ^SURE Exposure

Rotation Time 0.5 s

Scan Range 1338.0 mm

Dose Reduction AIDR3D

CTDIvol 2.7 mGy

DLP 372.5 mGy•cm

Body

Lung CT, CTDI 1.3 mGy

Aquilion Lightning A Lung CT was performed on a 70-year-old male ^SUREExposure, mA modulation and AIDR 3D Enhanced, Adaptive Iterative Dose Reduction are integrated into the protocol and automatically applied to the scan. AIDR 3D Enhanced reduces image noise while preserving diagnostic information leading to possible dose reduction. This case was acquired with a CTDI of 1.3 mGy. Multiplanar Reconstruction (MPR) images demonstrate pulmonary fibrosis bilaterally in the upper lobes and bilateral pulmonary emphysema.
