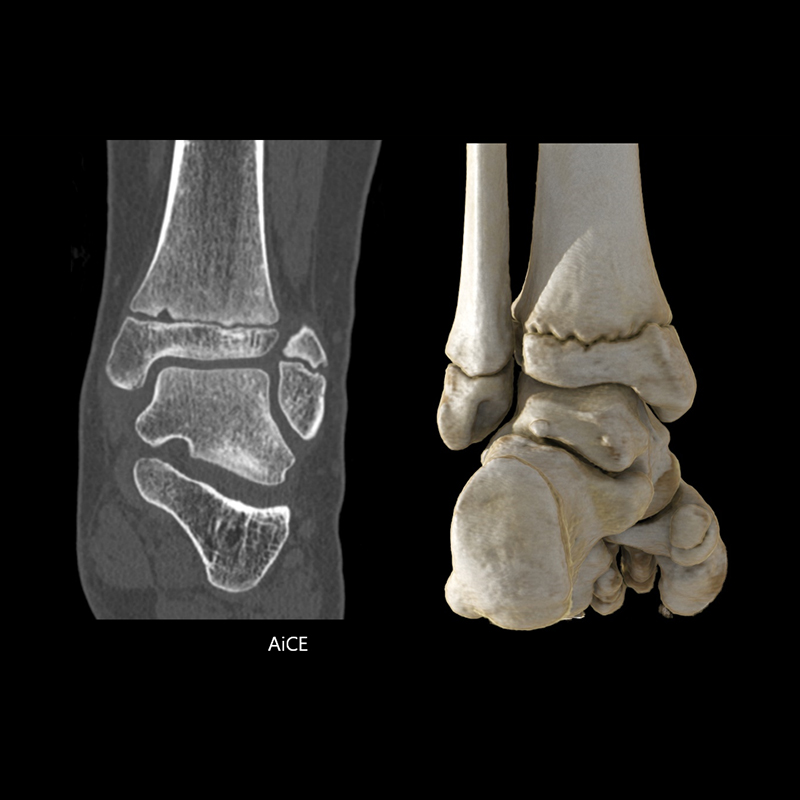

Ankle

Aquilion Lightning 80

Ankle scan reconstructed with AiCE

View Scan Parameters

Scan Mode Ultra-Helical

Rotation Time 0.75 s

CTDl 3.8 mGy

DLP 60.6 mGy.cm

Effective Dose

k factor n/a

×

AiCE with SEMAR

Aquilion Lightning 80

Ankle scan with internal fixation reconstructed with AiCE and SEMAR

View Scan Parameters

Scan Mode Ultra-Helical

Rotation Time 0.75 s

CTDl 3.8 mGy

DLP 60.6 mGy.cm

Effective Dose

k factor n/a

×

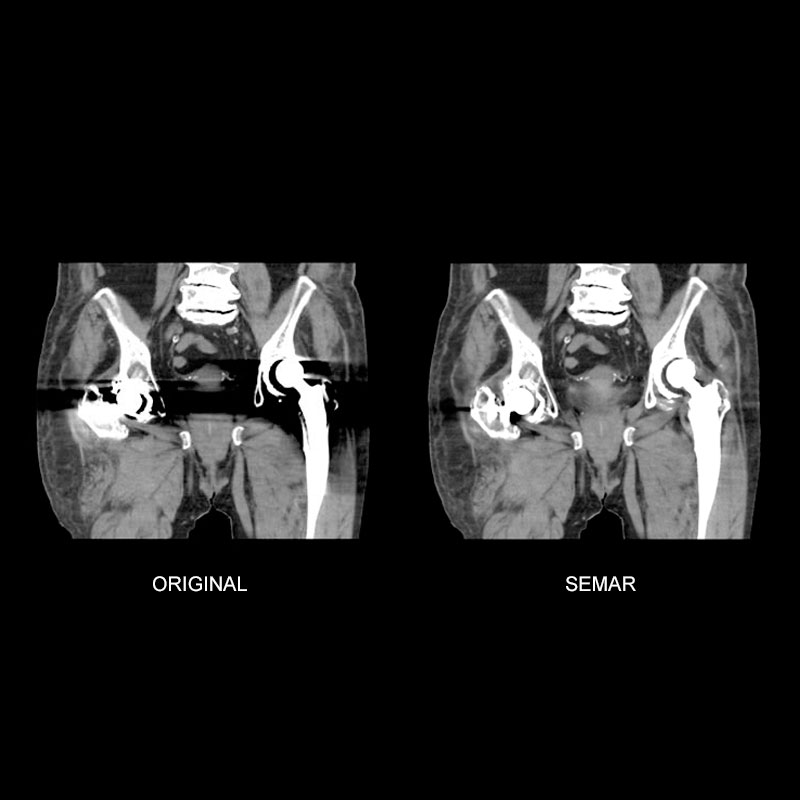

Pelvis with SEMAR

Aquilion Lightning 80

80-year-old woman had undergone bilateral total hip replacement. A CT scan of the pelvis with SEMAR was performed for evaluation.

View Scan Parameters

Scan Mode Ultra-Helical

Metal Artifact Reduction SEMAR

CTDlvol 8.7 mGy

Effective Dose 4.89 mSv

k-factor 0.015 (AAPM Report 96)

×

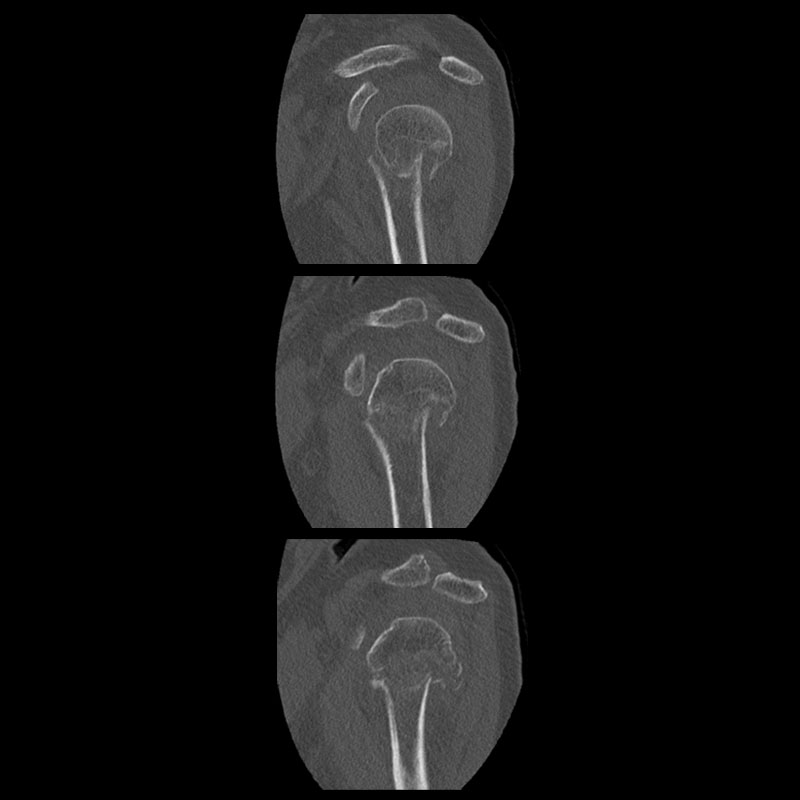

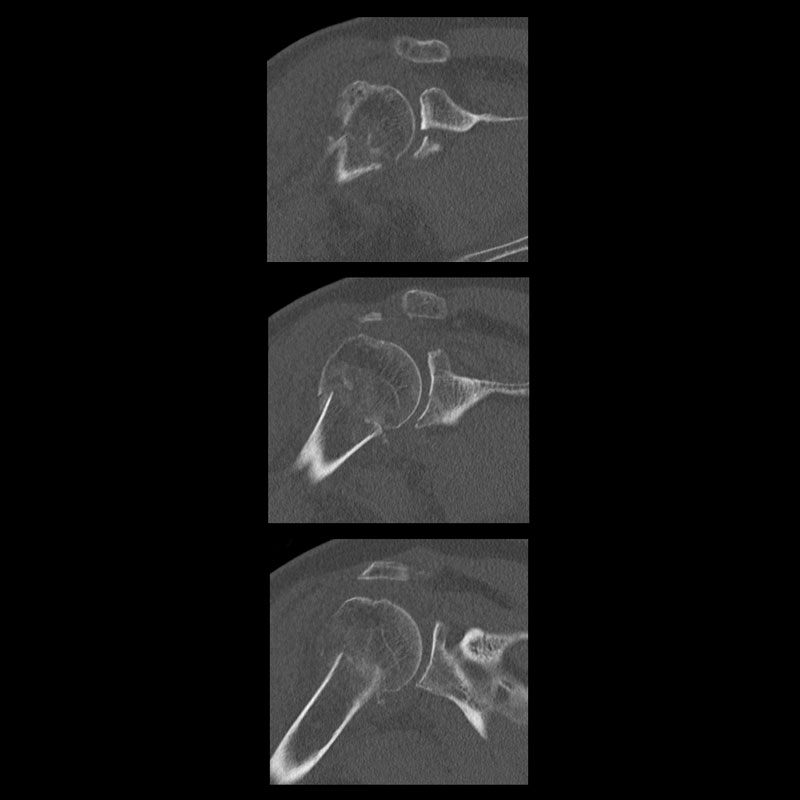

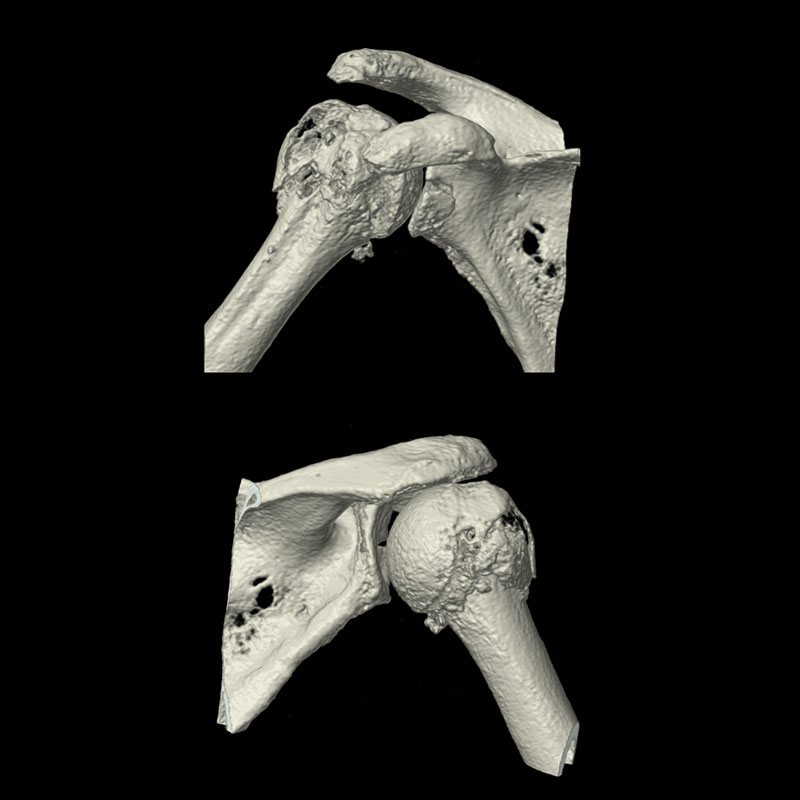

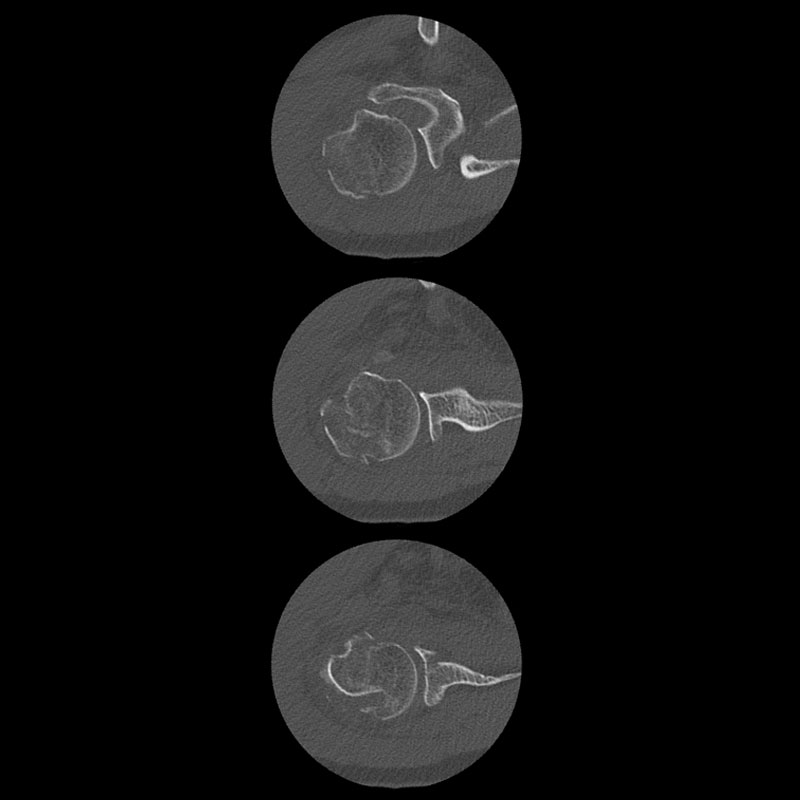

Right Shoulder

Aquilion Lightning 80

82-year-old man fell onto his right shoulder. An X-ray showed a fracture of the head of the humerus. A CT scan of the right shoulder was performed to further evaluate the injury.

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5mm x 80

CTDIvol 14.2 mGy

Effective Dose 3.53 mSv

k-factor 0.014 (AAPM Report 96)

×

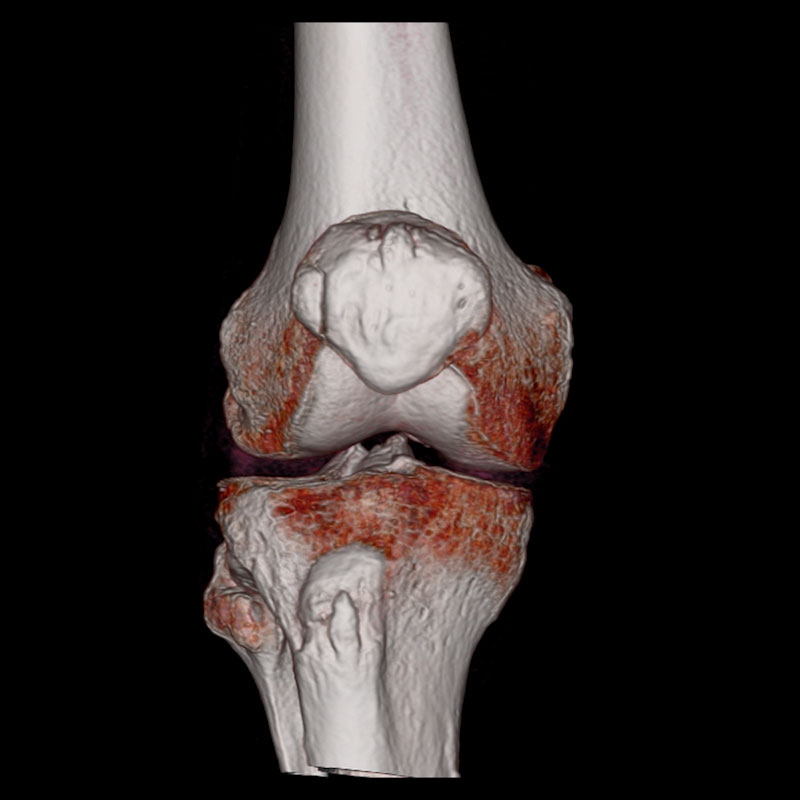

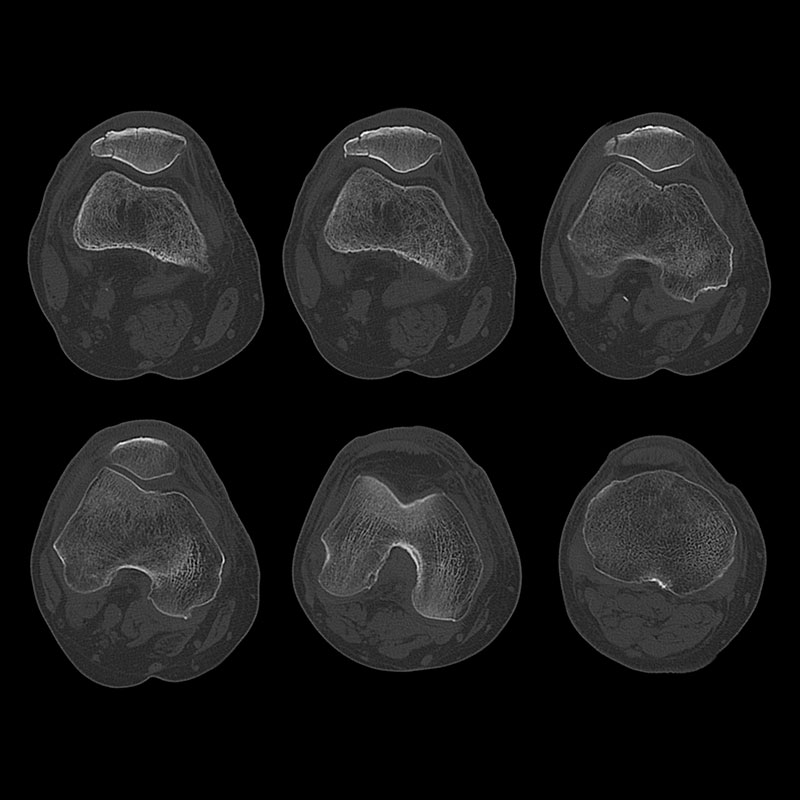

Vertical Patella Fracture

Aquilion Lightning 80

A CT scan of the right knee following a sport injury demonstrates a vertical fracture of the patella

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5mm x 80

kVp 120

mAs 100

Rotation Time 0.5s

Scan Range 192.0mm

Reconstruction AIDR 3D

CTDIvol 12.0mGy

DLP 282.1mGy·cm

Effective Dose

k-factor
