80列という、最適解。

Menu

Chest CTA

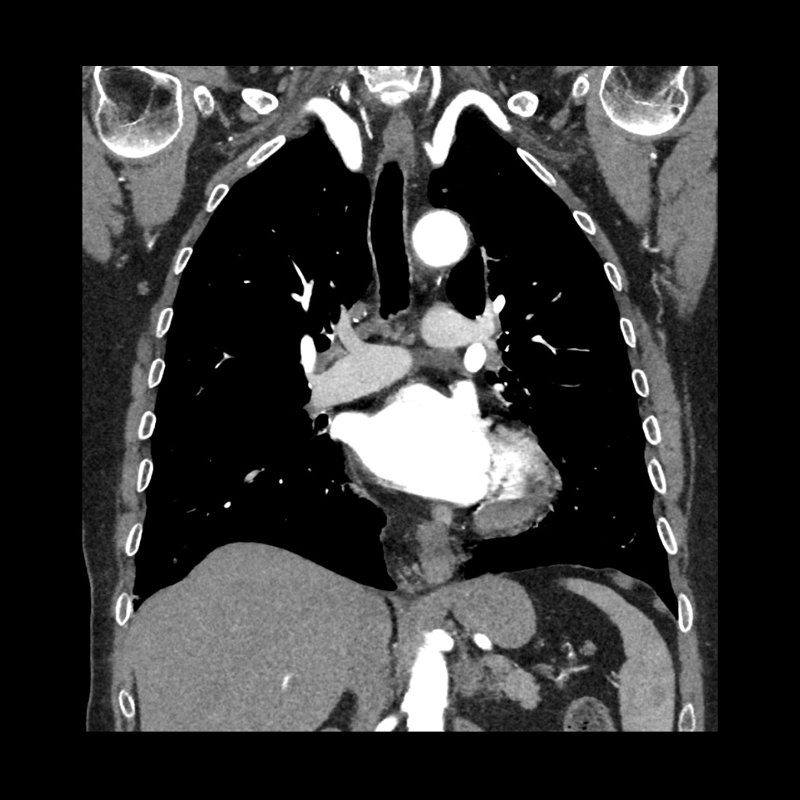

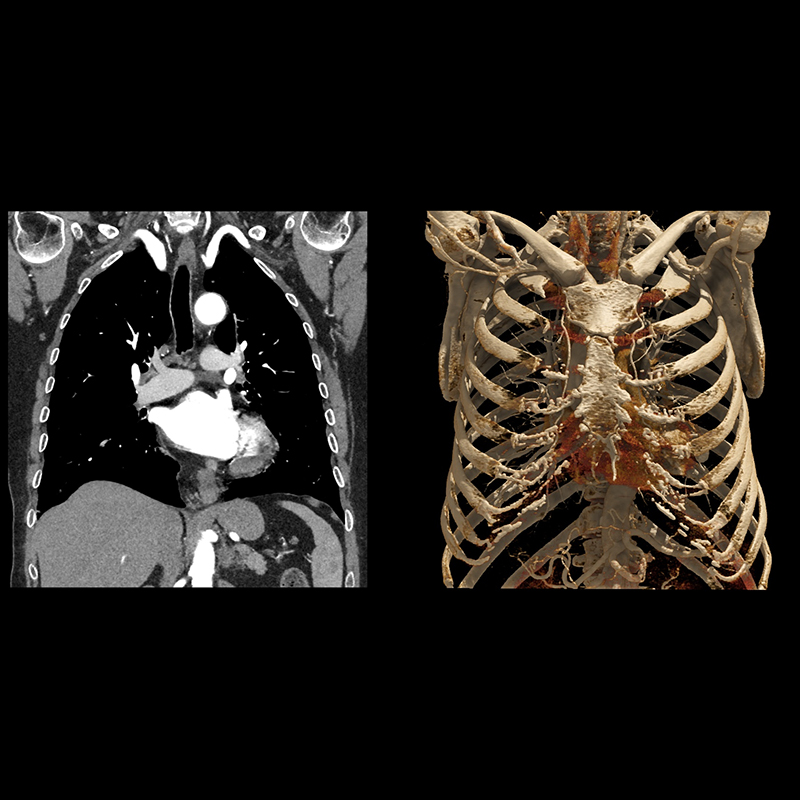

Aquilion Lightning 80

Arterial Phase Chest reconstructed with AiCE

View Scan Parameters

Scan Mode Ultra-Helical
Rotation Time 0.5 s
CTDl 4.3 mGy
DLP 164.7 mGy.cm
Effective Dose 2.31 mSv
k factor 0.014 (AAPM Report 96)
Aquilion Lightning 80 Chest CTA
Aquilion Lightning 80 Chest CTA
Aquilion Lightning 80 Chest CTA
Aquilion Lightning 80 Chest CTA
Aquilion Lightning 80 Chest CTA
Aquilion Lightning 80 Chest CTA
× 拡大画像

Aorta CTA

Aquilion Lightning 80

Aorta CTA reconstructed with AiCE

View Scan Parameters

Scan Mode Ultra-Helical
Rotation Time 0.5 s
CTDl 7.0 mGy
DLP 319.3 mGy.cm
Effective Dose 4.63 mSv
k factor 0.0145 (AAPM Report 96)
Aquilion Lightning 80 Aorta CTA
Aquilion Lightning 80 Aorta CTA
Aquilion Lightning 80 Aorta CTA
Aquilion Lightning 80 Aorta CTA
× 拡大画像

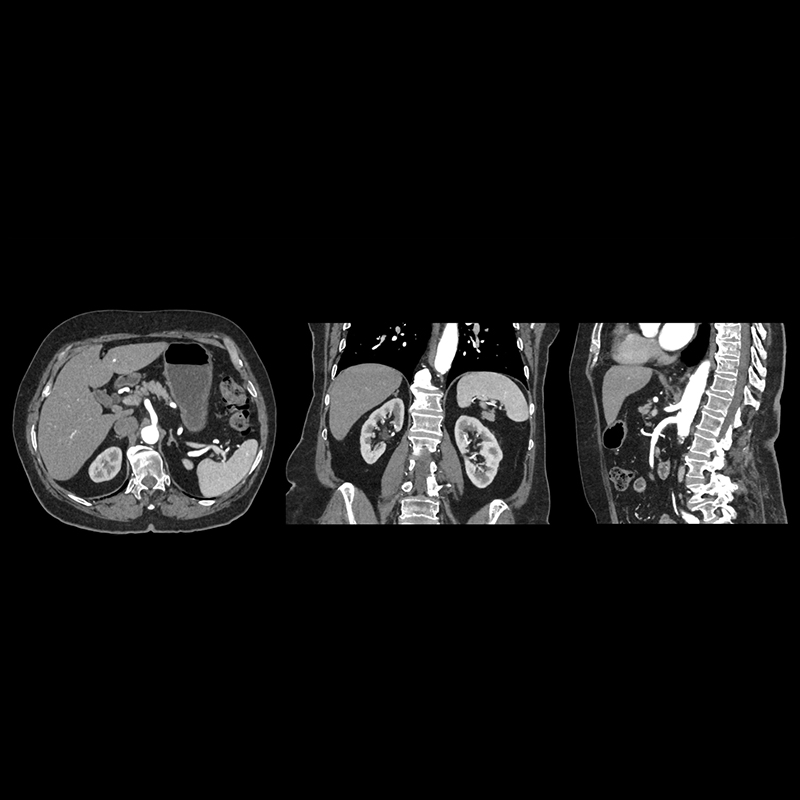

Abdomen

Aquilion Lightning 80

Arterial and venous phase abdomen

View Scan Parameters

Scan Mode Ultra-Helical
Rotation Time 0.5 s
CTDl Arterial 7.5 mGy, Venous 8.1 mGy
DLP Arterial 242.3 mGy.cm, Venous 393.3 mGy.cm
Effective Dose 9.53 mSv
k factor 0.015 (AAPM Report 96)
Aquilion Lightning 80 Abdomen
Aquilion Lightning 80 Abdomen
Aquilion Lightning 80 Abdomen
Aquilion Lightning 80 Abdomen
× 拡大画像

Chest

Aquilion Lightning 80

43-year-old woman presented with a history of esophageal cancer. A low-dose CT of the chest was performed to rule out metastasis.

View Scan Parameters

Scan Mode Ultra-Helical
Dose Reduction AIDR 3D
CTDlvol 2.5 mGy
Effective Dose 1.36 mSv
k-factor 0.014 (AAPM Report 96)
Aquilion Lightning 80 Chest
Aquilion Lightning 80 Chest
Aquilion Lightning 80 Chest
Aquilion Lightning 80 Chest
× 拡大画像

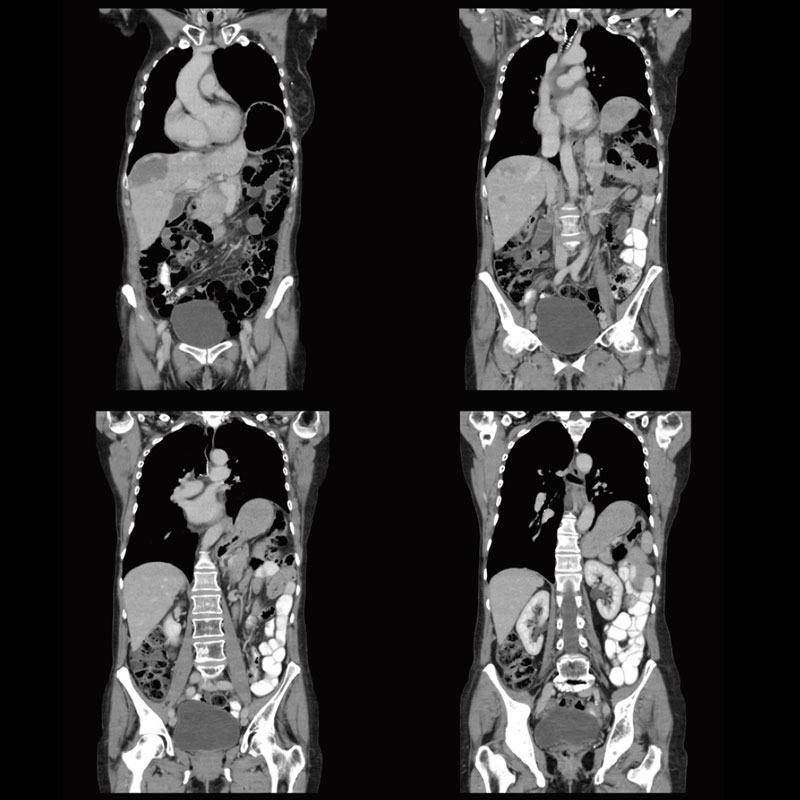

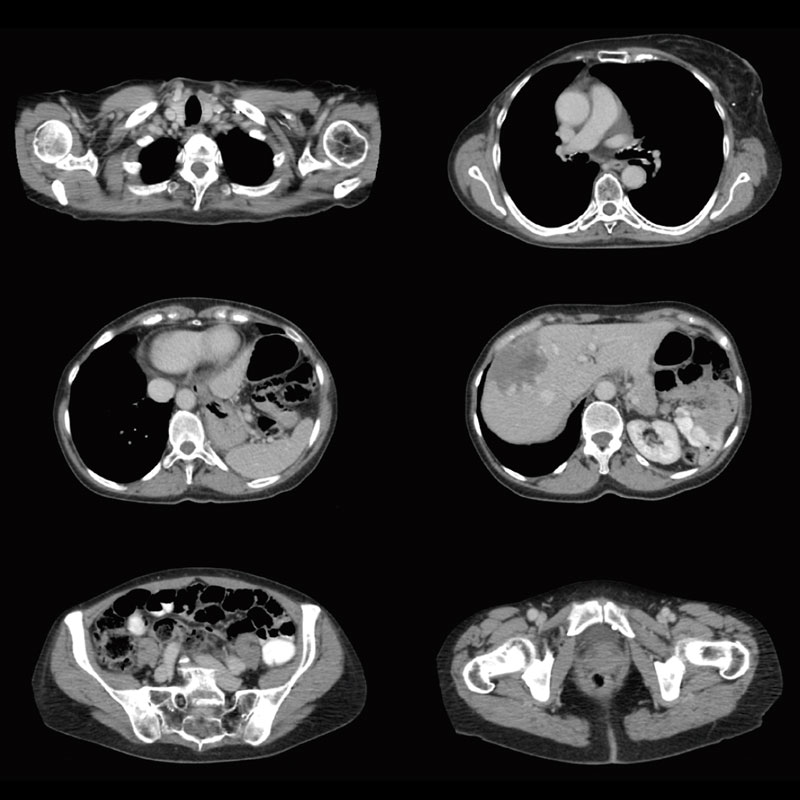

Chest, Abdomen, and Pelvis

Aquilion Lightning 80

65-year-old woman presented with a history of breast cancer. A CT scan of the chest, abdomen, and pelvis was performed in a serial checkup protocol.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
CTDlvol 6.6 mGy
Effective Dose 6.69 mSv
k-factor 0.0145 (AAPM Report 96)
Aquilion Lightning 80 Chest, Abdomen, and Pelvis
Aquilion Lightning 80 Chest, Abdomen, and Pelvis
Aquilion Lightning 80 Chest, Abdomen, and Pelvis
Aquilion Lightning 80 Chest, Abdomen, and Pelvis
× 拡大画像

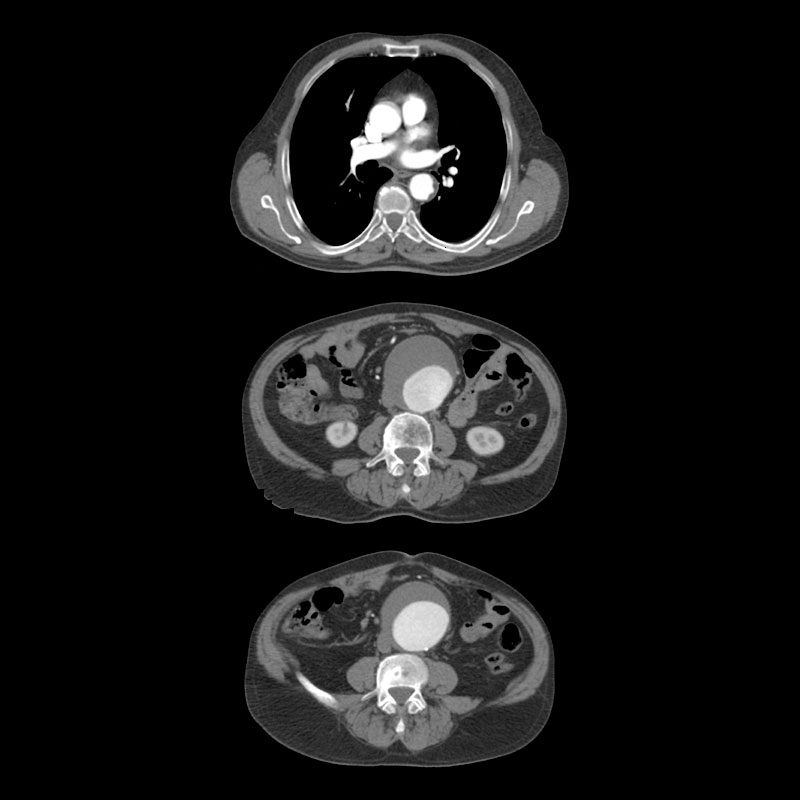

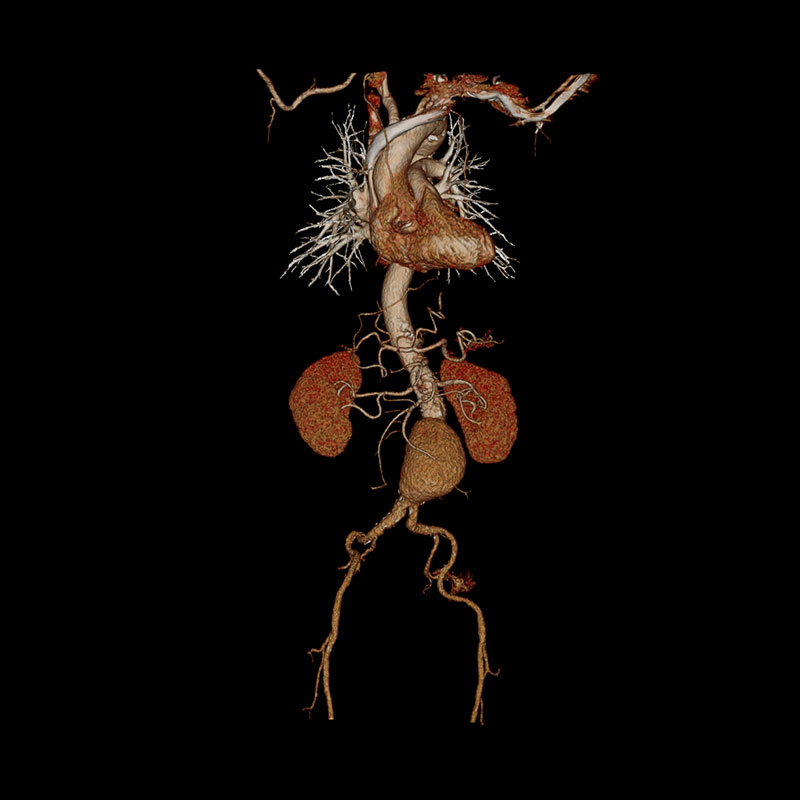

Whole Aorta CTA

Aquilion Lightning 80

64-year-old man presented to the ER with a suspected abdominal aortic aneurysm. A CT scan of the thoracic and abdominal aorta was performed.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5 mm x 80
Bolus Timing SUREStart™
CTDlvol 8.0 mGy
Effective Dose 7.99 mSv
k-factor 0.0145 (AAPM Report 96)
Aquilion Lightning 80 Whole Aorta CTA
Aquilion Lightning 80 Whole Aorta CTA
Aquilion Lightning 80 Whole Aorta CTA
Aquilion Lightning 80 Whole Aorta CTA
Aquilion Lightning 80 Whole Aorta CTA
Aquilion Lightning 80 Whole Aorta CTA
× 拡大画像

CT Lung Biopsy

Aquilion Lightning 80

SUREFluoro provides three contiguous slices and twelve frames per second live viewing for streamlined procedures.

View Scan Parameters

Scan Mode S&S
Collimation 4.0mm x 30
kVp 120
mAs 37
Rotation Time 0.75s
Scan Range 12.0mm
Reconstruction AIDR 3D
CTDIvol 3.8mGy
DLP 4.6mGy·cm
Effective Dose 0.6mSv
k-factor 0.014 (AAPM Report 96)
Aquilion Lightning 80 CT Lung Biopsy
Aquilion Lightning 80 CT Lung Biopsy
× 拡大画像

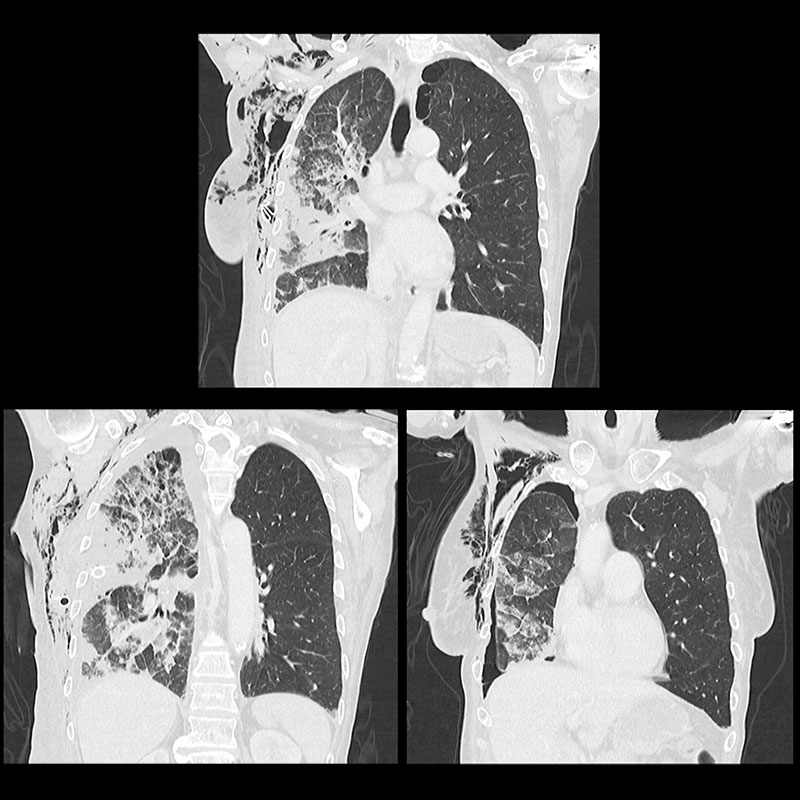

MVA, Pneumothorax

Aquilion Lightning 80

This lung scan was performed in this patient following a motor vehicle accident. The scan demonstrates pneumothorax and chest tube placement as well as extensive subcutaneous emphysema.

View Scan Parameters

Scan Mode Ultra-Helical
Collimation 0.5mm x 80
kVp 120
mAs SUREExposure
Rotation Time 0.5s
Scan Range 320.0mm
Reconstruction AIDR 3D
CTDIvol 3.8mGy
DLP 138.3mGy·cm
Effective Dose 1.93mSv
k-factor 0.014 (AAPM Report 96)
Aquilion Lightning 80 MVA, Pneumothorax
Aquilion Lightning 80 MVA, Pneumothorax
Aquilion Lightning 80 MVA, Pneumothorax
Aquilion Lightning 80 MVA, Pneumothorax
Aquilion Lightning 80 MVA, Pneumothorax
Aquilion Lightning 80 MVA, Pneumothorax
× 拡大画像
