Aquilion Prime SP 3 Phase VHP, CAP

Aquilion Prime SP

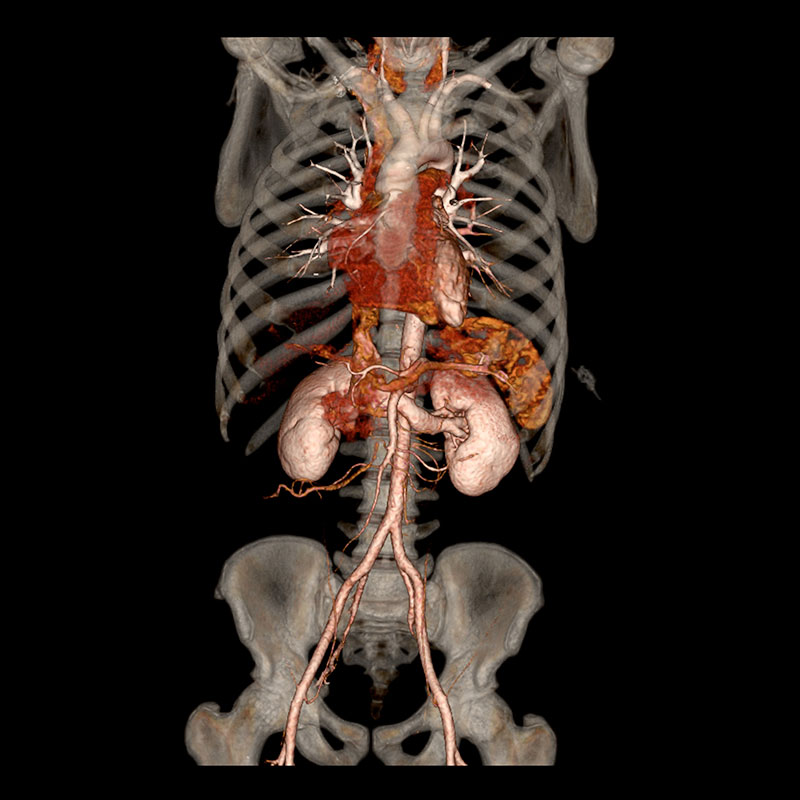

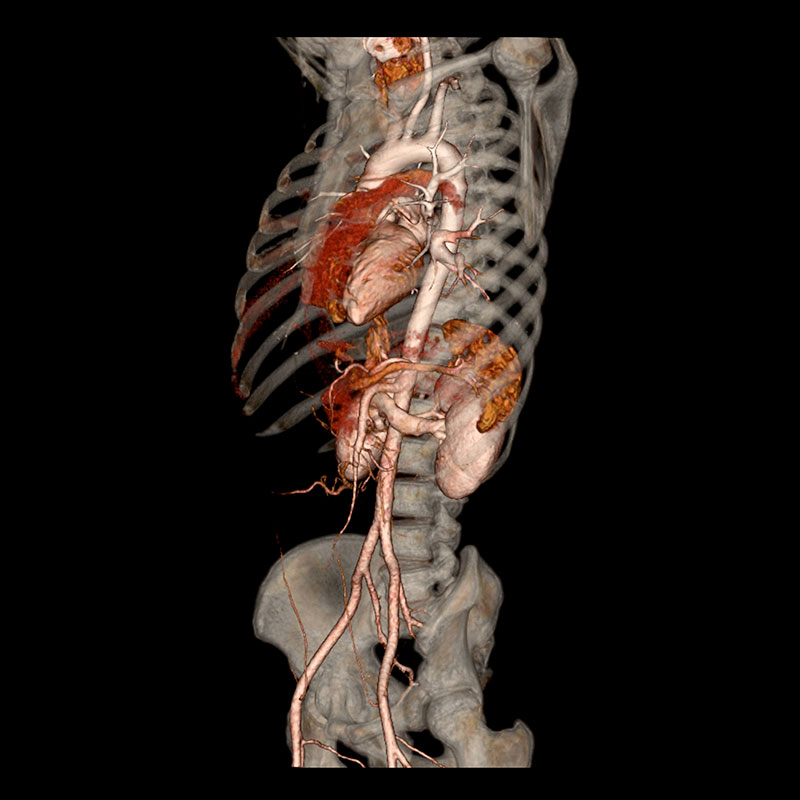

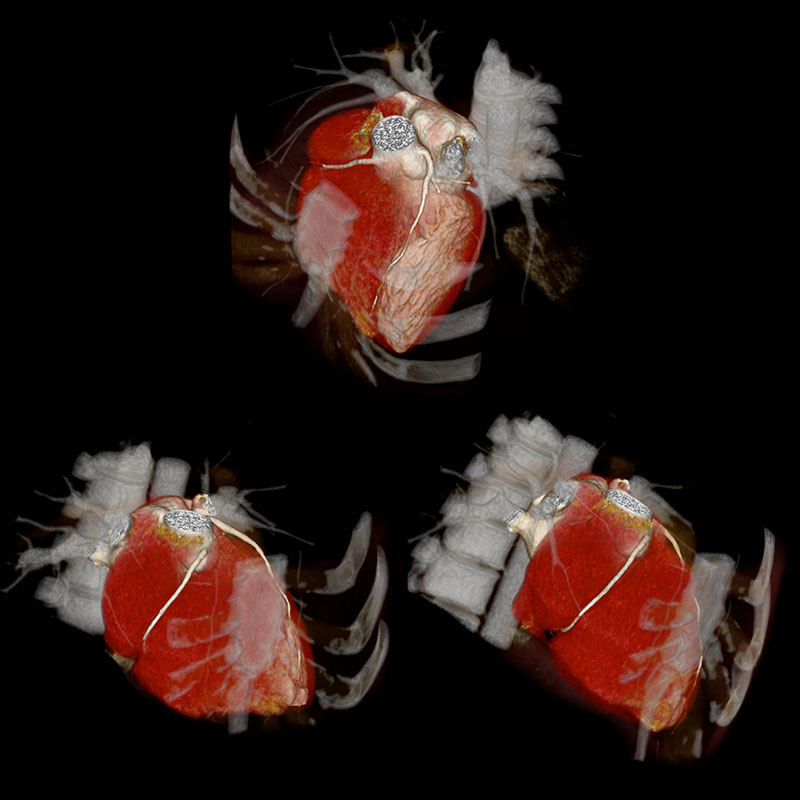

A 3 phase variable helical pitch (vHP) CT scan was performed in this male patient (HP 65-19-65). vHP combines gated and non-gated scan modes allowing contrast and radiation dose reduction. In this case the scan was non-gated/ gated/ non-gated. The patient's HR registered was 51 bpm. 3D Volume Rendered and Multiplanar Reconstruction (MPR) demonstrates no large vessel calcifications. No plaques or stenosis were found in the Right Coronary Artery (RCA) and in the Circumflex Coronary Artery (Cx). A myocardial bridge is seen in the Left Anterior Descending (LAD). *AAPM Report 96; k-factor 0.0145

View Scan Parameters

Scan Mode vHP

Collimation 0.5 mm x 80

kVp 100

mAs SURE Exposure

Rotation Time 0.35 s

Scan Range 614.0 mm

Dose Reduction AIDR 3D

CTDlvol 8.4 mGy

DLP 566.2 mGy·cm

Effective Dose* 8.2 mSv

×

Aquilion Prime SP SURESubtraction, Aortic Aneurism

Aquilion Prime SP

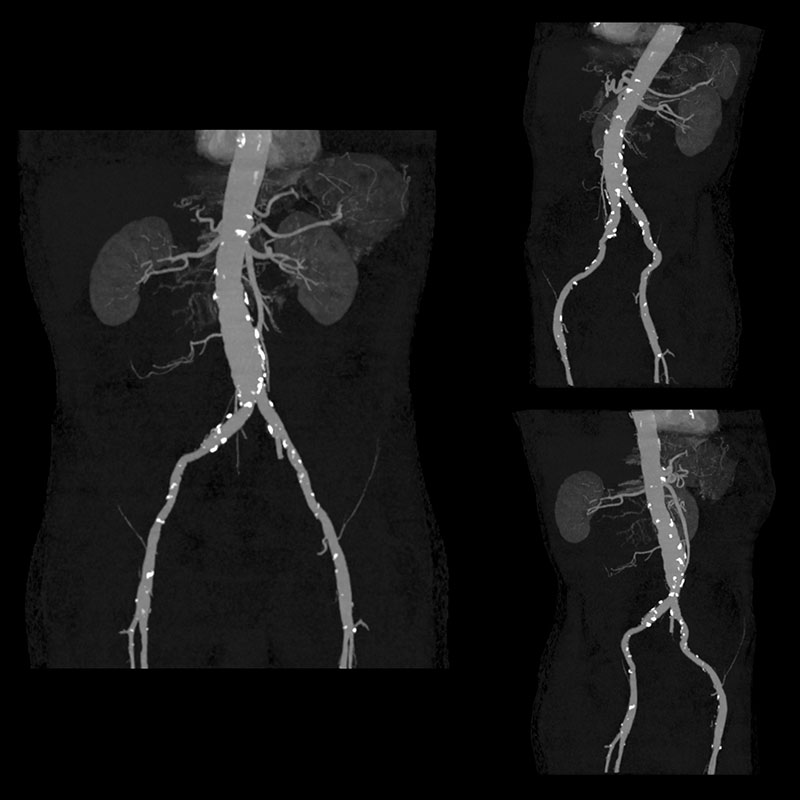

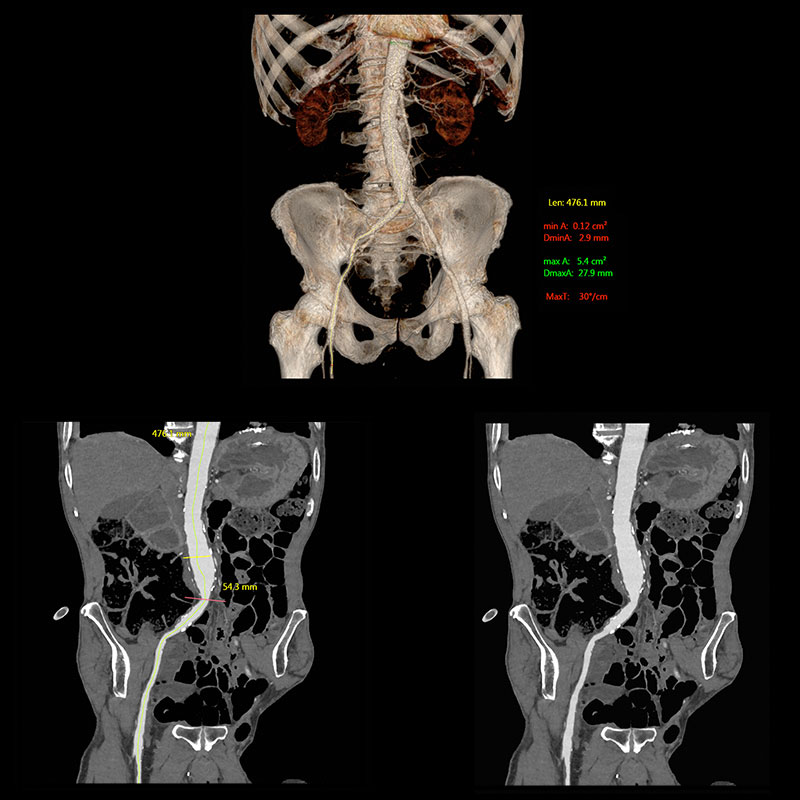

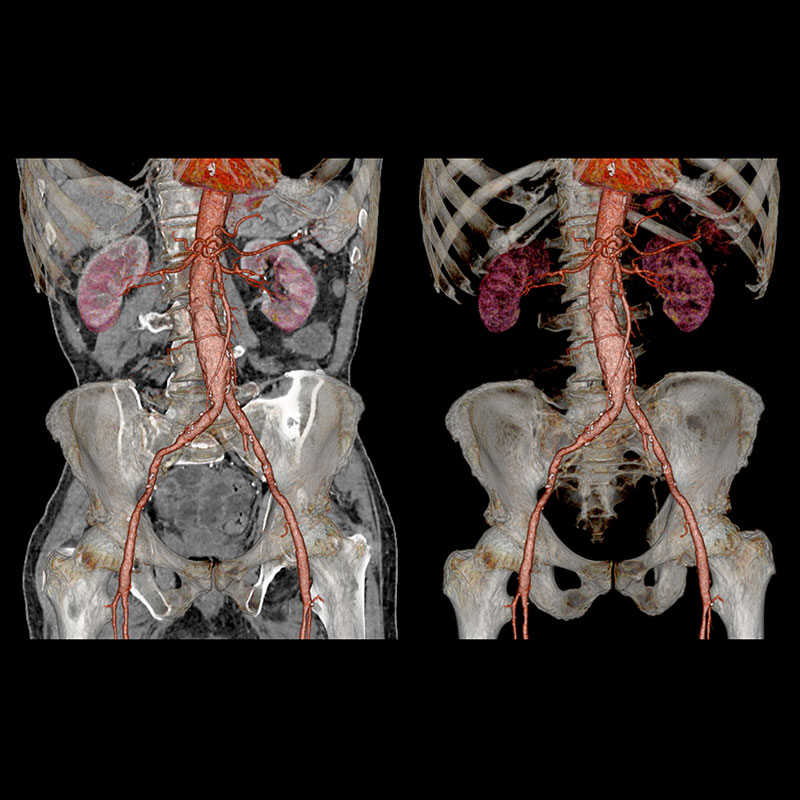

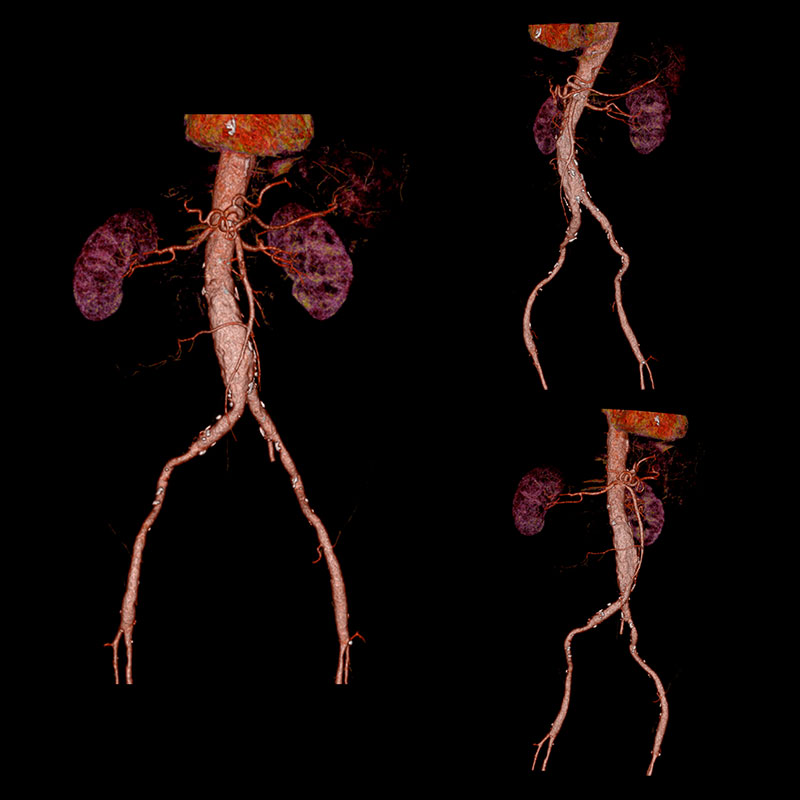

A SURESubtraction Abdominal Aortic CT scan was performed with AIDR 3D, Adaptive Iterative Dose Reduction. SURESubtraction scan improves the angiography workflow; the non-contrast and contrast scan are linked for faster set-up. During the reconstruction process, it automatically subtracts the bone, reconstruct types of images as requested and transfer the final images to the destination. 3D Volume Rendered, Maximum Intensity Projection (MIP), Curved Multiplanar Reconstruction (cMPR) and axial images demonstrate infrarenal aortic aneurysm with thrombus in lumen. *AAPM Report 96; k-factor 0.015

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 120

mAs SURE Exposure

Rotation Time 0.5 s

Scan Range 422.0 mm

Dose Reduction AIDR 3D

CTDlvol 3.6 mGy

DLP 169.1 mGy·cm

Effective Dose* 2.5 mSv

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 120

mAs SURE Exposure

Rotation Time 0.5 s

Scan Range 422.0 mm

Dose Reduction AIDR 3D

CTDlvol 3.6 mGy

DLP 169.1 mGy·cm

Effective Dose* 2.5 mSv

Aquilion Prime SP SURESubtraction, Aortic Aneurism

×

Aquilion Prime SP Lung CT, 1.3 mGy

Aquilion Prime SP

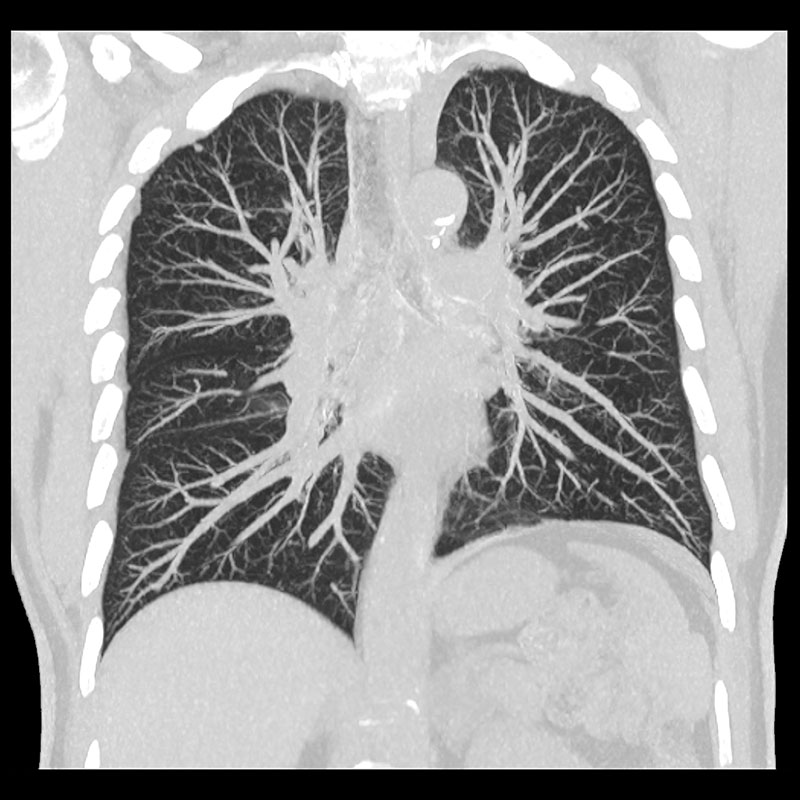

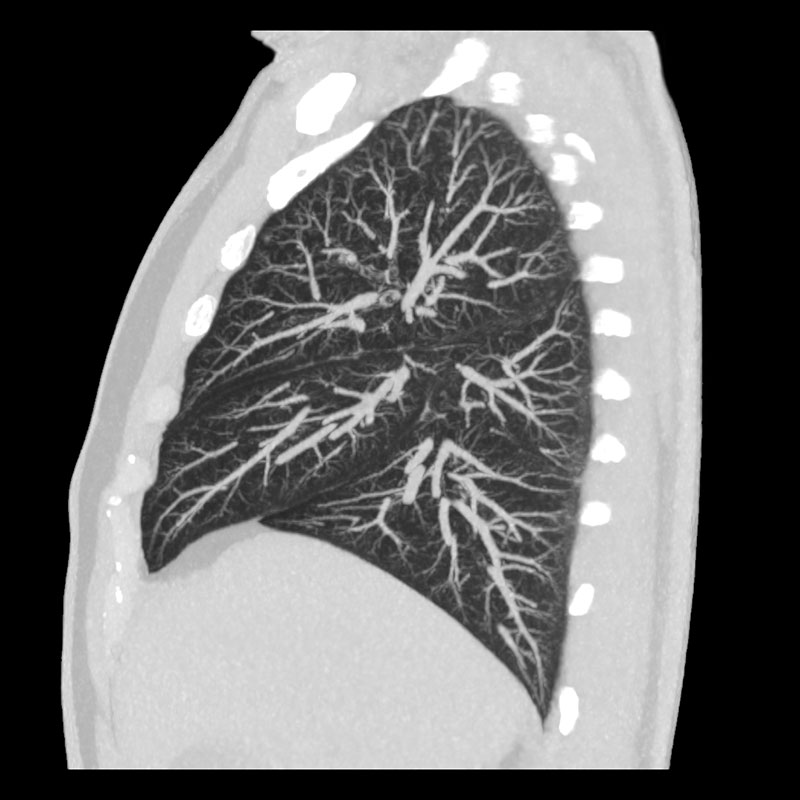

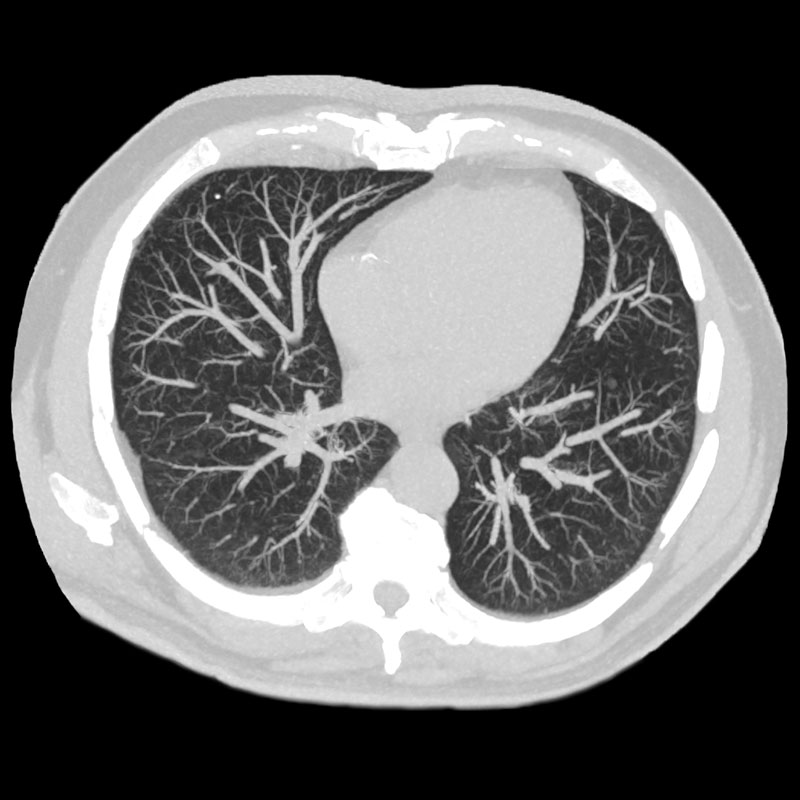

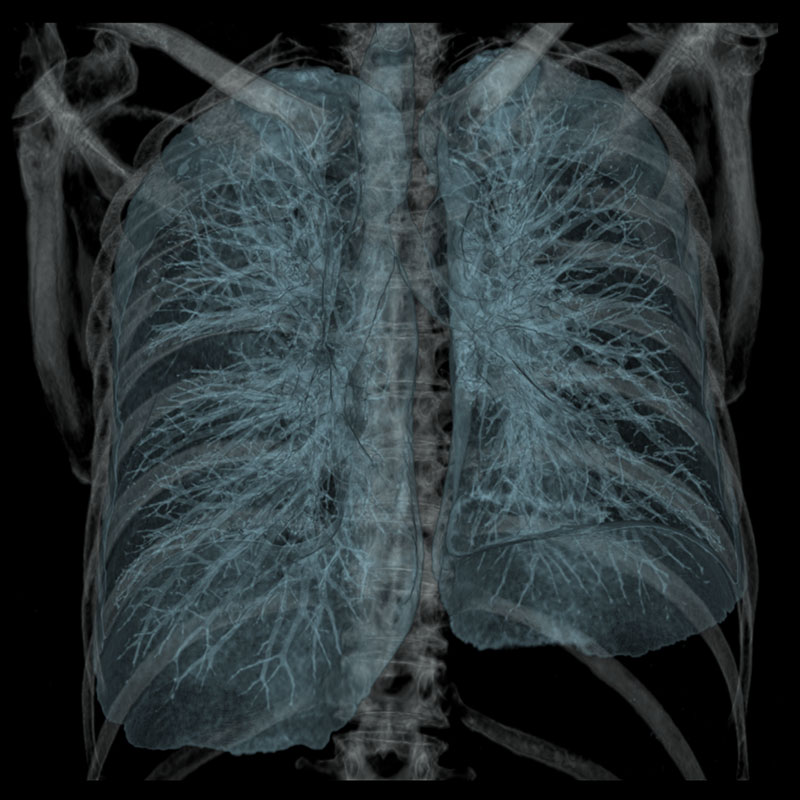

64-year-old male, a low dose scan of the chest was performed for lung nodule investigation. AIDR 3D, Adaptive Iterative Dose Reduction was automatically applied to the scan to improve image quality while lowering the radiation dose. Lung nodules are seen in the Multiplanar Reconstruction (MPR). *AAPM Report 96; k-factor 0.014

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 120

mAs SURE Exposure

Rotation Time 0.5 s

Scan Range 324 mm

Dose Reduction AIDR 3D

CTDlvol 1.3 mGy

DLP 48.4 mGy·cm

Effective Dose* 0.67 mSv

×

Aquilion Prime SP Pulmonary Embolism

Aquilion Prime SP

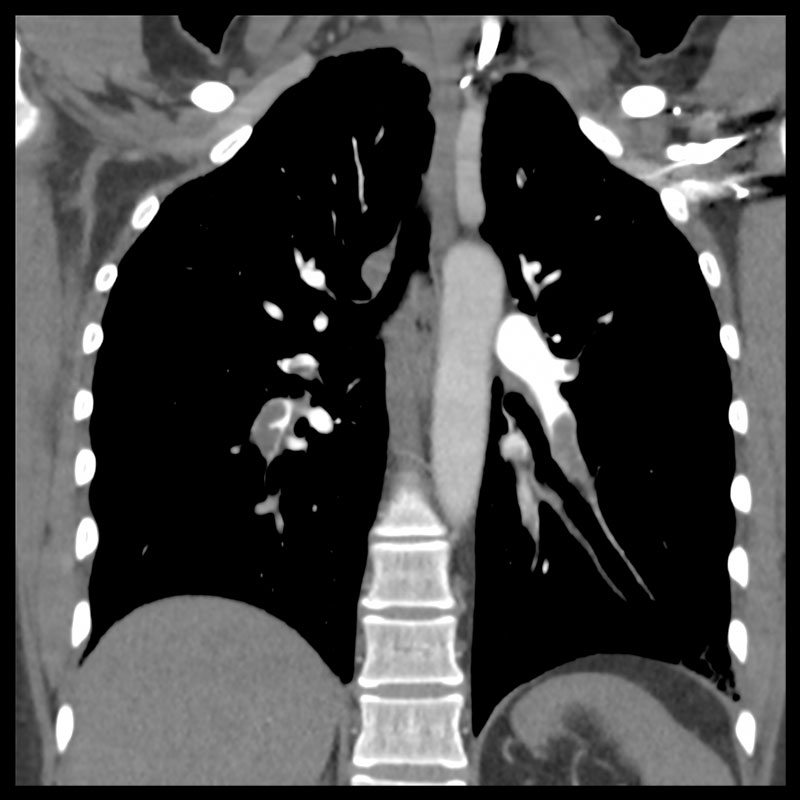

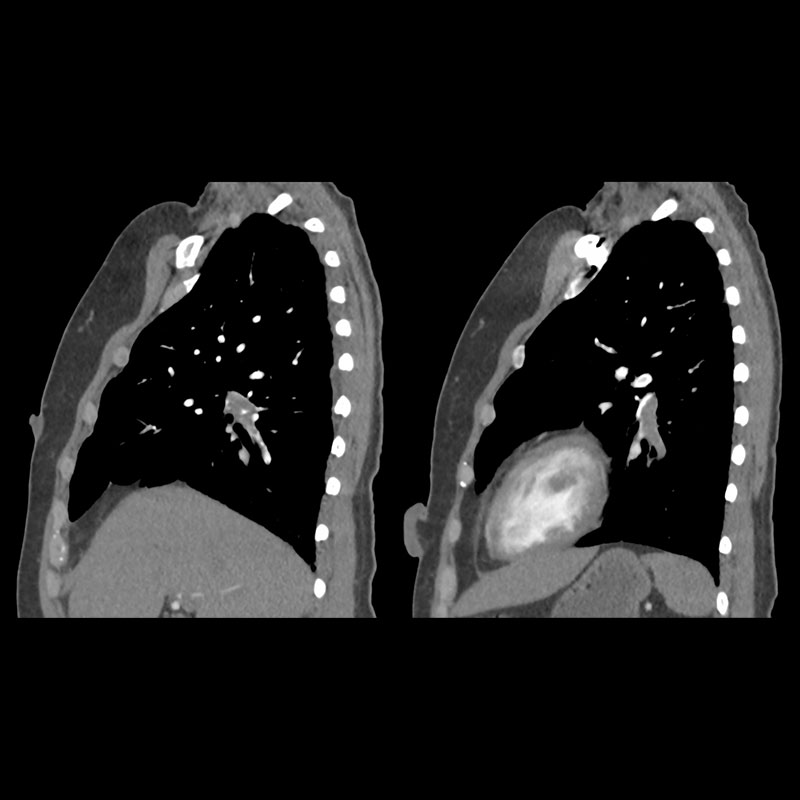

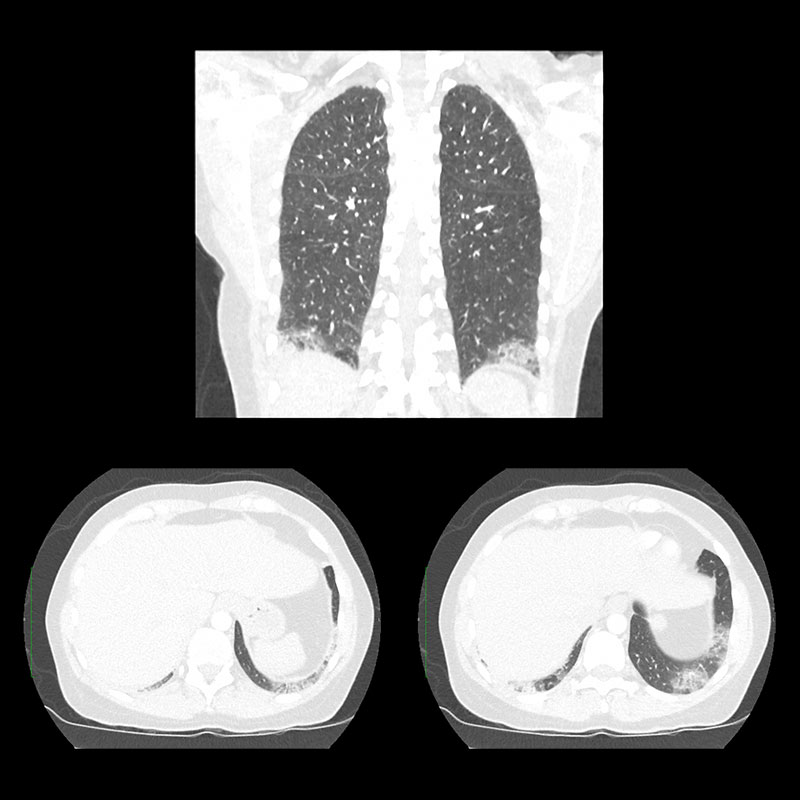

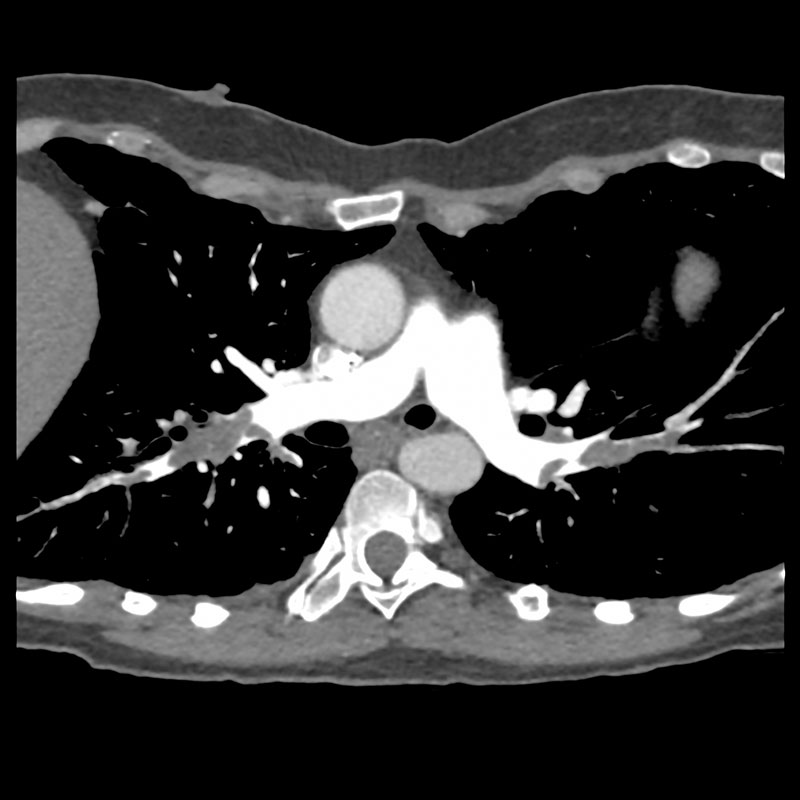

A female patient presented with chest pain and shortness of breath. An iodinated contrast enhanced Chest CT was performed with SUREkV and SUREExposure, automated kV and mA selection. Multiplanar Reconstruction (MPR) and curved MPR demonstrate bilateral pulmonary thrombo-embolism. Pulmonary consolidations are also seen bilaterally in the base of the lungs. *AAPM Report 96; k-factor 0.014

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp SURE kV 100

mAs SURE Exposure

Rotation Time 0.35 s

Scan Range 280 mm

Dose Reduction AIDR 3D

CTDlvol 5.2 mGy

DLP 171.2 mGy·cm

Effective Dose* 2.3 mSv

×

Aquilion Prime SP SEMAR, Prosthetic Joint Infection

Aquilion Prime SP

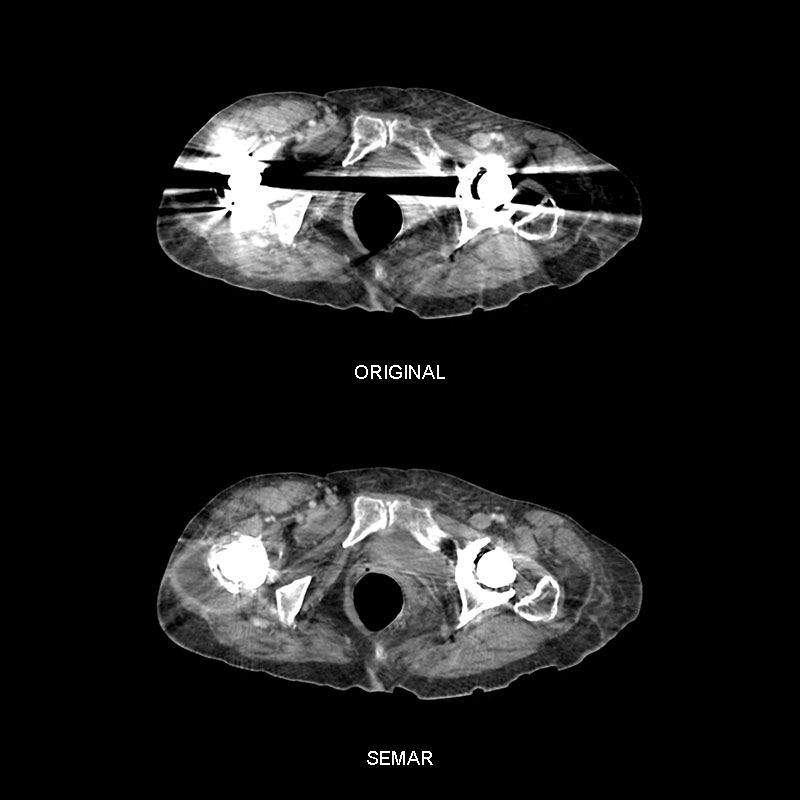

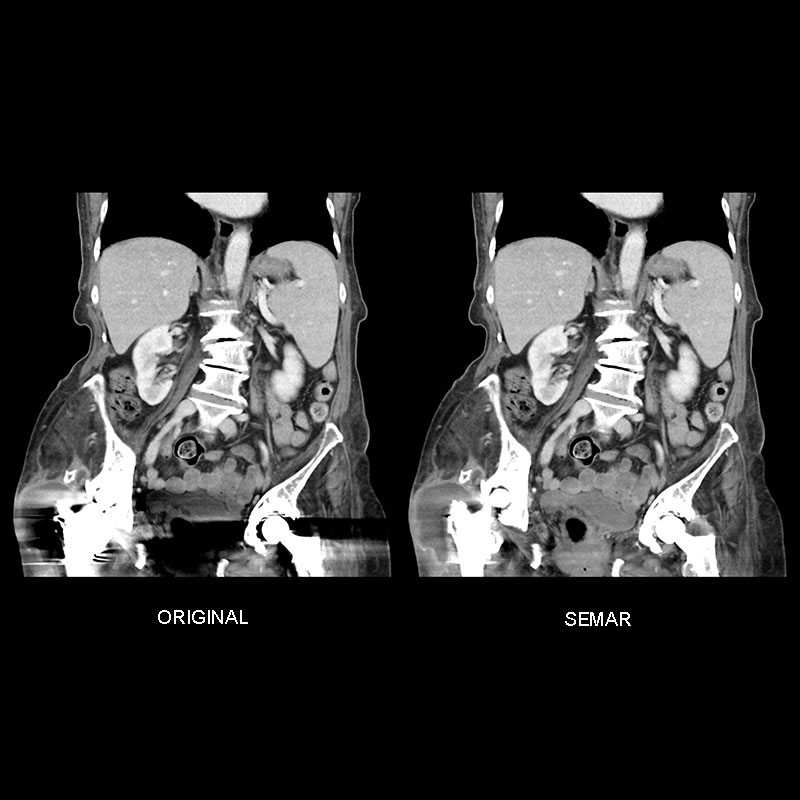

80-year-old female with bilateral joint arthroplasty presented with sudden fever and signs of hip inflammation. A CT scan of the abdomen was performed and automatically reconstructed with SEMAR, Single Energy Metal Artifact Reduction. The SEMAR images reveal an abscess, signal of prosthetic joint infection originally obscured due to the metal artifacts. *AAPM Report 96; k-factor 0.015

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 100

mAs SURE Exposure

Rotation Time 0.5 s

Scan Range 356 mm

Dose Reduction AIDR 3D

Metal Artifact Reduction SEMAR

CTDlvol 6.5 mGy

DLP 292.4 mGy·cm

Effective Dose* 4.3 mSv

Aquilion Prime SP SEMAR, Prosthetic Joint Infection

×

Aquilion Prime SP SURESubtraction Lung

Aquilion Prime SP

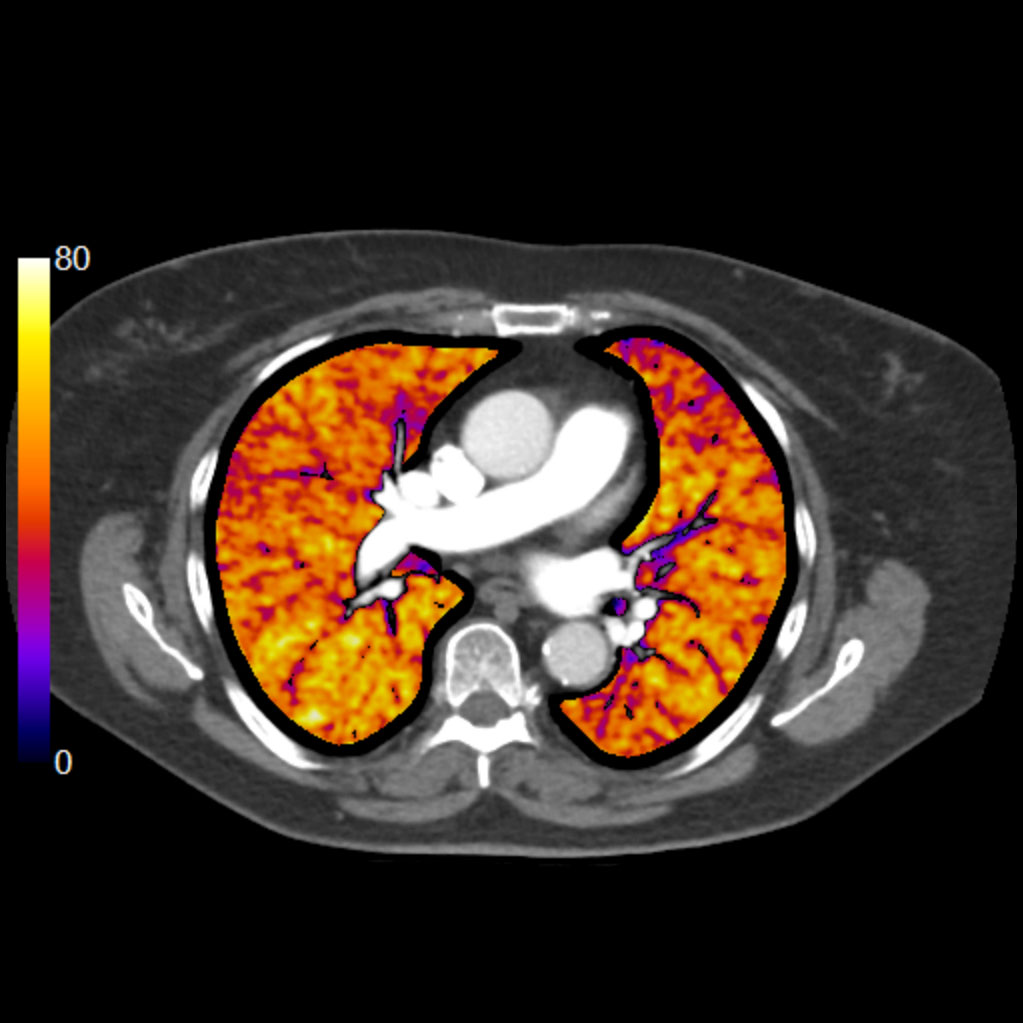

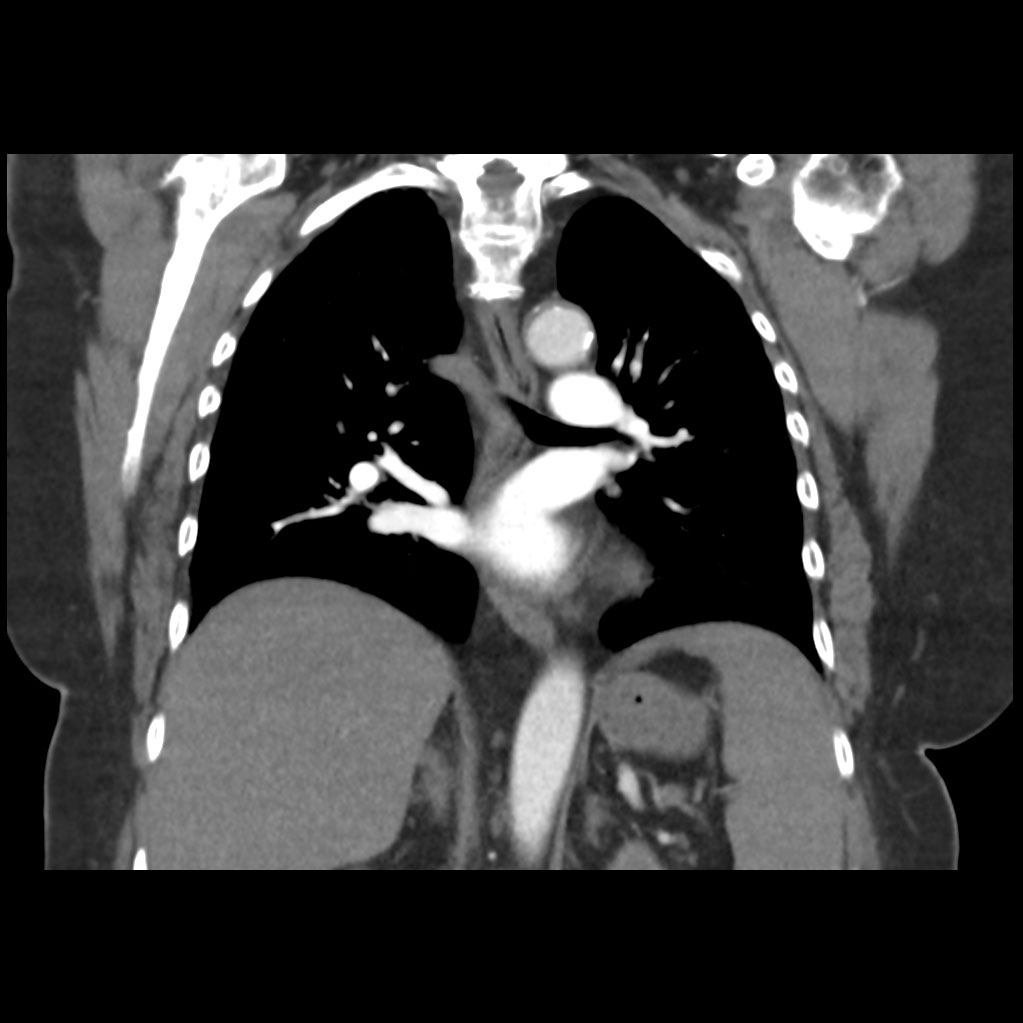

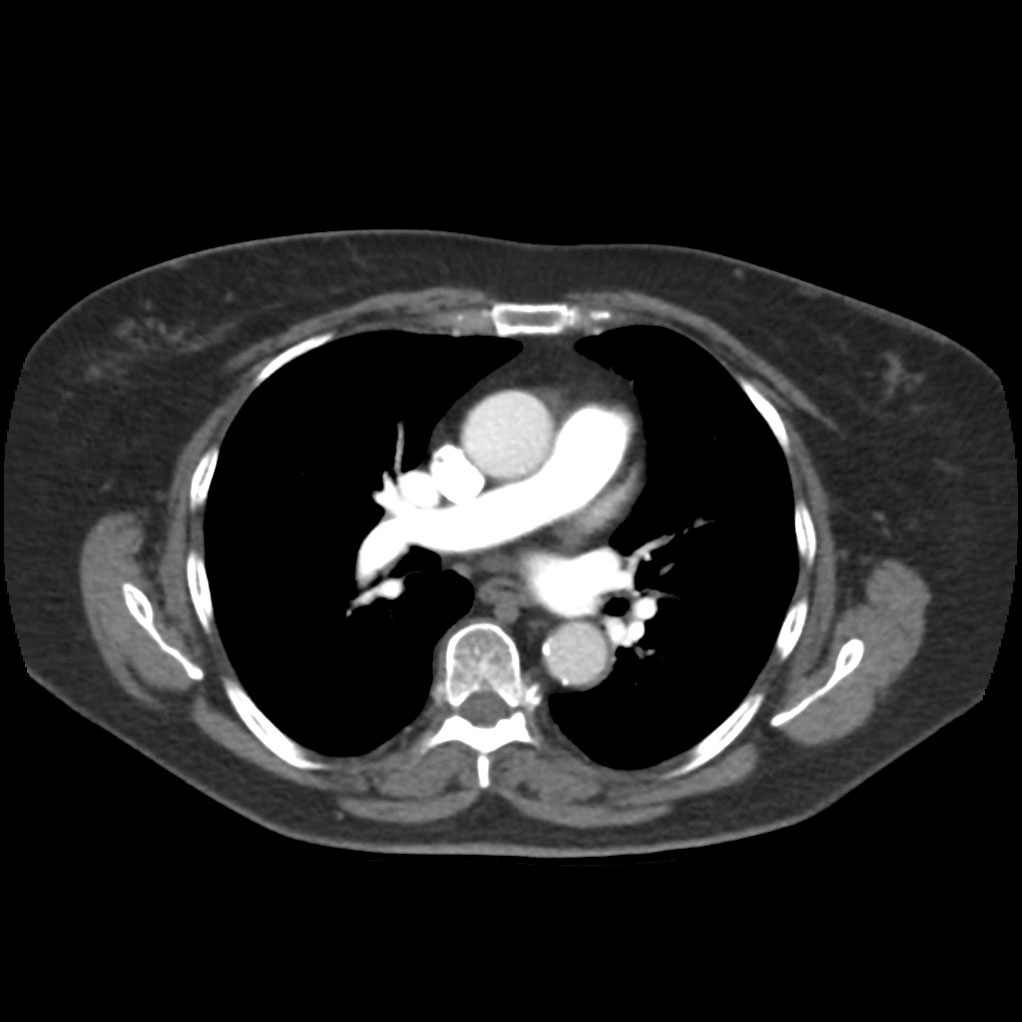

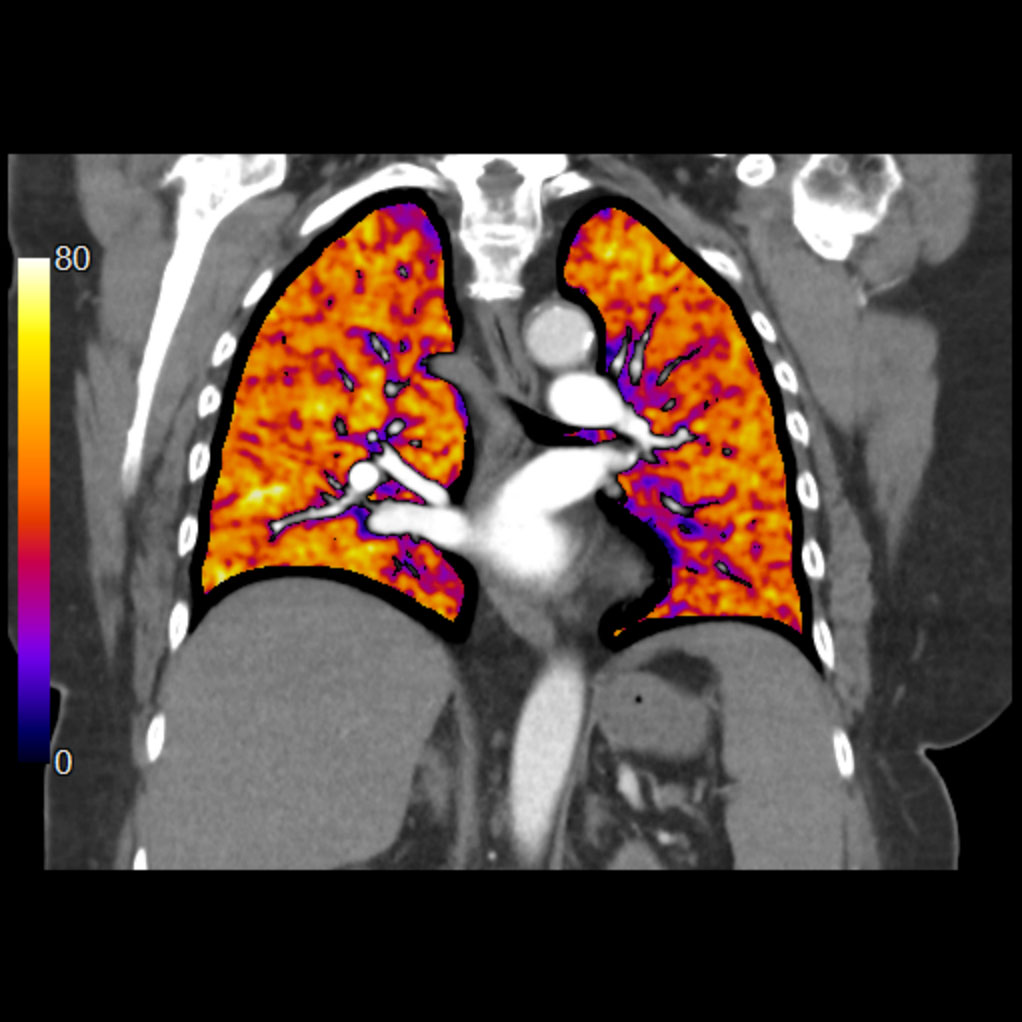

73-year-old female presented with shortness of breath. A SURESubtraction Lung CT scan was performed to rule out pulmonary emboli. The color iodine maps were automatically generated and show no perfusion defect. No pulmonary embolus was seen. *AAPM Report 96; k-factor 0.014

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 100

mAs SURE Exposure

Rotation Time 0.35 s

Scan Range 280 mm

Dose Reduction AIDR 3D

CTDlvol 5.5 mGy

DLP 179.8 mGy·cm

Effective Dose* 2.5 mSv

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 100

mAs SURE Exposure

Rotation Time 0.35 s

Scan Range 280 mm

Dose Reduction AIDR 3D

CTDlvol 6.2 mGy

DLP 203.8 mGy·cm

Effective Dose* 2.85 mSv

×

Aquilion Prime SP Abdomen and Pelvis

Aquilion Prime SP

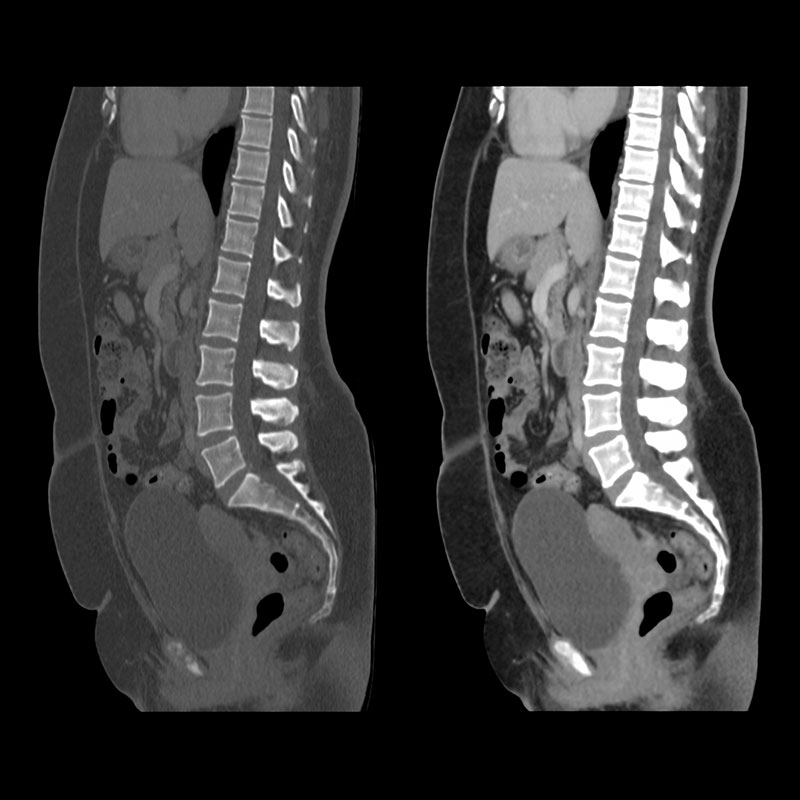

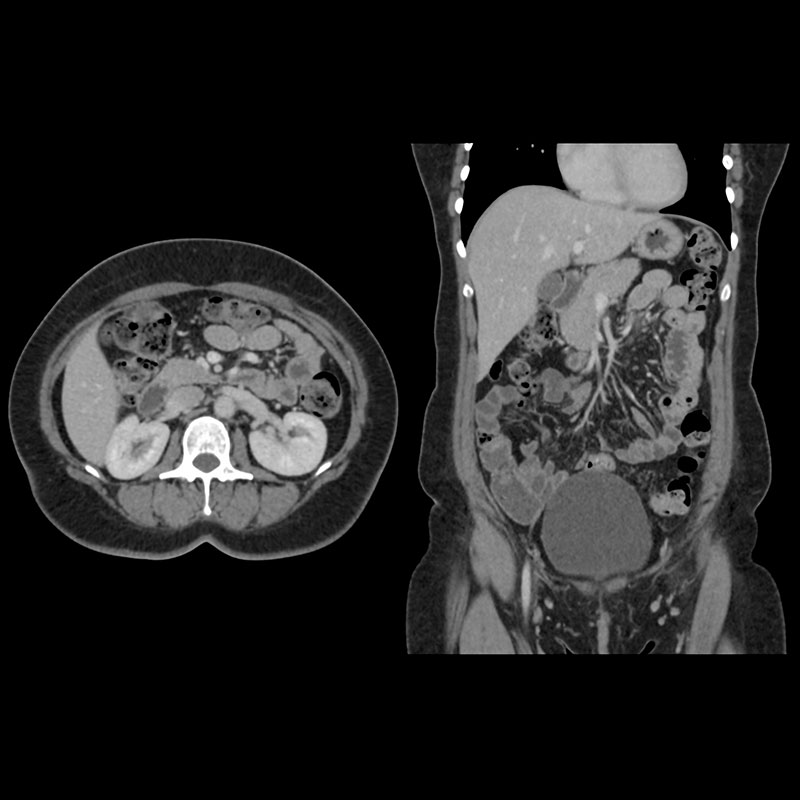

A large patient presented with abdominal pain. An Abdominal and Pelvic CT scan was performed with iodinated intravenous contrast. Multiplanar Reconstruction (MPR) demonstrate the patient's anatomy. *AAPM Report 96; k-factor 0.015

View Scan Parameters

Scan Mode Ultra-Helical

Collimation 0.5 mm x 80

kVp 100

mAs SURE Exposure

Rotation Time 0.5 s

Scan Range 1399.2 mm

Dose Reduction AIDR 3D

CTDlvol 7.6 mGy

DLP 387.1 mGy·cm

Effective Dose* 5.8 mSv

×
